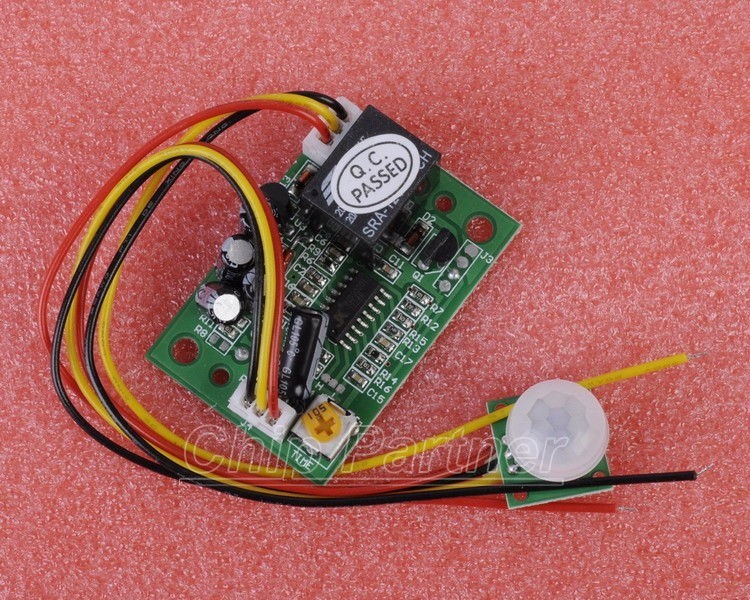

12V PIR IR Pyroelectric Infrared Module Adjust Relay Output (FS00185)

Features:
Based on infrared technology, automatic control products, when someone enters switch sensing range, special sensors to detect changes in the human body infrared spectrum, switch automatically switches the load, do not leave the sensing range (who are active), the switch will continue to turn; person left, switch off automatically load delay. People to light, people from the lights out, kind convenient, safe energy.

1. Bipolar design: three-wire connection, and the load capacity 100W
2. Automatic sensors: one to switch immediately turned (one event will last turn), who left after the delay off automatically.
3. Relay switch: can withstand high current output, high power load;
4. Automatic random delay (continuous delayed mode): People in the induction scope activity, the switch is always turned off automatically lose if the stationary switch off automatically. Adjustable delay time
5. Adjustable delay time: 10 seconds -350 seconds.
6. Ultra Low Power: Switch own power <0.0088W/h (annual power consumption of <0.077 degrees) than other brands of similar products more energy-saving ..
7. Lightning features: special lightning protection devices, can effectively prevent lightning and other transient high pressure on the switch damage.

Induction:Passive
Operating Voltage:DC12V
Induction principle:humanbodyinfrare
Own power:<0.0088W/h
Sensing distance:5 to 7m
Load capacity:Maximum: 100W, inductive loads require half the power usage down
Induction angle:About 120 degrees, 100 degrees up and down
Load Range:Various types of DC LED lamps, load
Light control sensor:5LUX-500LUX (adjustable)
Ambient temperature:-20℃ -+50℃
