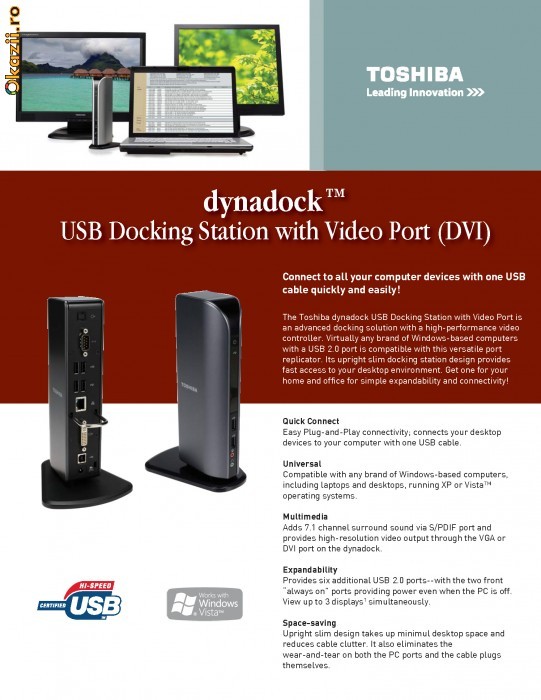

Toshiba Dynadock Universal USB Docking Station with Video (DVI)

dynadock™

Connect to all your computer devices with one USB cable quickly and easily!
The Toshiba dynadock USB Docking Station with Video Port is an advanced docking solution with a high-performance video controller. Virtually any brand of Windows-based computers with a USB 2.0 port is compatible with this versatile port replicator. Its upright slim docking station design provides
fast access to your desktop environment. Get one for your home and offi ce for simple expandability and connectivity!

Quick Connect

Easy Plug-and-Play connectivity; connects your desktop devices to your computer with one USB cable.

Universal

Compatible with any brand of Windows-based computers, including laptops and desktops, running XP or Vista™ operating systems.

Multimedia

Adds 7.1 channel surround sound via S/PDIF port and provides high-resolution video output through the VGA or DVI port on the dynadock.

Expandability

Provides six additional USB 2.0 ports--with the two front “always on” ports providing power even when the PC is off.

View up to 3 displays simultaneously.

Space-saving

Upright slim design takes up minimul desktop space and reduces cable clutter. It also eliminates the wear-and-tear on both the PC ports and the cable plugs themselves.

Features

• Space-saving upright slim design reduces cable clutter
• Provides 6 USB 2.0 ports with easy Plug-and-Play connectivity
• Advanced docking station with high performance video controller support:
- Available in either VGA or DVI video support
- Supports viewing up to three displays simultaneously
• Access all your computer devices through one USB cable connectivity
• Front USB ports supply power even if the PC is off
• Adds 7.1 channel surround sound though S/PDIF port

Specifications

• Ports:
-Six USB (2.0)
-One S/PDIF (optical digital audio output)
-One Ethernet (RJ-45 LAN)
-One Serial
-One microphone (3.5 mm)
-One headphone or speaker (3.5 mm)
-One DVI-I (Digital 24-pin +Analog 5-pin Female connector)
• Input ports
-One USB (2.0) port
-One DC-in plug
• Power
-AC 100-240V (input)
-DC 5V / 5A (output)
• Supported Video Modes
-Mirror mode
-Extended mode
-Primary Display
• Resolution
-32-bit color depth up to 1600 x 1200
• Audio processor USB Audio Device Class specifi cations v1.0 compliant 7+1 channel audio processor
• Ethernet protocol
- IEEE 802.3
- IEEE 802.3u
• Serial connector
-RS232 DB9 Male connector
• Dimensions & Weight
-1.8” (W) x 3.1” (D) x 8.75” (H)
-1.13 lbs.
• Agency approvals:
-Safety: UL/cUL, CE, PSE, SAA, CB Report
-EMC: FCC, IC, CE, VCCI, SMA
• One (1) Year Standard Limited Warranty
Minimum System Requirements
• PC with 1.2GHz or higher processor:
Intel® Pentium®/Celeron® family or AMD K6/Athron/Duron family, or compatible processor (Core™2 Duo 2.0GB PC processor or higher recommend)
• Windows Vista™ or XP with SP1 (SP2 recommended)
• 512MB of RAM or higher (1GB recommended)
• USB 2.0 port
• 30MB of available disk space
• CD-ROM drive

Visit dynadock.com for updates

©Toshiba America Information Systems, Inc. dynadock is a trademark of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. All other trademarks are the property of their respective owners. All products and names mentioned are the property of their respective owners. Product specifications, configurations, prices, system/component/options availability are all subject to change without notice. All Rights Reserved.

dynadock™ USB Docking Station with Video Port (DVI)

Product Name dynadock USB Docking Station with Video (DVI)
Part Number PA3542U-2PRP
UPC 0***27
Product Category Expansion

Operating System Windows® XP and Vista™4
Environmental RoHS Compliant
Country of Origin China

Compatible with Computers with a USB 2.0 port
Color Black
Product Dimensions 45mm x 78mm x 222mm
Product Weight 500g (with base
plate)

Package Contents

USB docking station with DVI port

Base plate

Cable holder

USB 2.0 cable

AC power adapter

AC power cord/cable

CD (user manual, driver and utility) Quick installation guide

DVI to VGA adapter

Part Set-up Information
