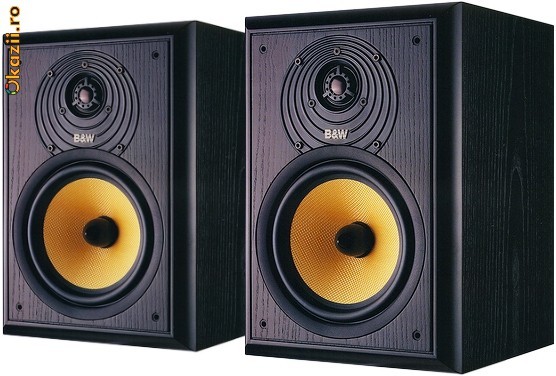

Bowers&Wilkins B&W CDM 2 SE Boxe audiofile

In stare buna. Functionare execelentă.

Câteva detalii tehnice:

CDM 2SE - Stand - mount/Bookshelf loudspeaker system

The CDM 2SE is ideal for the smaller room, as it offers superb sound from a compact enclosure.

An integral part of the CDM 2SE is the use of rounded baffle edges, which reduce the effect known as diffraction. In normal cabinet construction, sound waves from the drive units radiate toward both the listener and the cabinet edges. If the sound waves meet sharp edges, they re-radiate towards the listener and, due to time delay, interfere with and blur the sound coming directly from the drive unit. Rounding the edges reduces this time smearing, giving you the listener a clearer sound and better defined stereo image.

Technical highlights

Kevlar®: B&W developed and patented the method of using Kevlar® for loudspeaker cones to reduce unwanted standing waves. DuPont originally created Kevlar® for use in bulletproof vests.

Description:

2-way 4th-order vented-box system

Drive units:

1x 165mm (6½ in) woven Kevlar®cone bass/midrange

1x 25mm (1in) alloy dome high-frequency

Frequency range: -6 dB at 51 Hz and 30 kHz

Frequency response: 65 Hz – 20 kHz ±3 dB on reference axis

Dispersion: Within 2 dB of response on reference axis

Horizontal: over 40° arc

Vertical: over 10° arc

Sensitivity: 87 dB spl (2.83V, 1m)

Harmonic distortion: 2nd & 3rd harmonics < 1% 100 Hz – 20 kHz (90 dB spl, 1 m)

Nominal impedance: 8 W (minimum 4.5 W)

Crossover frequency: 3 kHz

Power handling: 30 W – 120 W continuous into 8W on unclipped programme

Max. recommended cable impedance: 0.3 W

Dimensions:

Height : 316 mm (12¼ in)

Width : 220 mm (8⅝ in)

Depth : 242 mm (9½ in)

Net Weight: 7.0 kg (15.4 lb)
