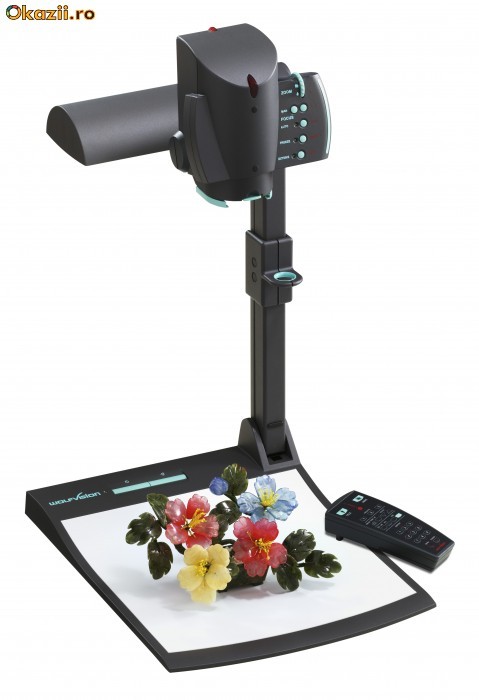

Technical Data VZ-9
USA distribution: W @wolfvision.net
WolfVision Inc, Burlingame (San Francisco), CA 94010 / USA, Tel.(650)648-0002, Tollfree (800)356-WOLF, Fax:(650)648-0009, usa.west@wolfvision.net
Asia distribution: WolfVision Asia,
Japan / Australia distribution: WolfVision Co Ltd, Tokio, ZIP164-0003, Tel.(++81)3-33603231, Fax:(++81)3-33603236, wolfvision.japan@wolfvision.com
olfVision USA East Inc, Duluth (Atlanta), GA 30096 / USA, Tel.(770)931-6802, Tollfree 1-877-873WOLF, Fax:(770)931-6906, usa.east
Singapore 757718, Tel.++65-6366 9288, Fax: ++65-6366 9280, info@wolfvisionasia.com
Canada distribution: Wolfvision Canada Inc, Ottawa, ON, K1B 4T7, Tel. 613-741-9898, Fax 613-741-3747, wolfvision.canada@wolfvision.com
United Kingdom distribution: WolfVision UK Ltd, Manchester, M22 5XB, Tel. 0161 435 6081, Fax: 0161 435 6100, wolfvision.uk@wolfvision.com
Technology / Camera 1-CCD 1/3" Progressive Scan camera
Pictures per second (as picked up by the camera) 30 frames (=full pictures)
Resolution (measured) 640 lines
Resolution in Image Turn Mode 820 lines
Image Turn mode (for increased resolution when pi cking up complete portrait
pages) plus image rotation 90, 180 and 270 degrees yes (for large pages up to US-legal size with increased resolution)
Total pixels of CCD 850,000
Native signal output (4:3) XGA (1024x768)
Converted output signals (4:3) SXGA (1280x1024), SVGA (800x600), PAL/NTSC
Converted Widescreen output signals (16:9 and 16:10) HD/HDTV 720p and 1080p at 50/60Hz, WXGA, WSXGA+
Vertical image-frequency Progressive Scan: 85, 75 or 60 Hz (switchable), PAL: 50 Hz, NTSC: 60 Hz
Signal format non-interlaced and interlaced
Iris automatic and manual
White balance adjustment automatic and manual
Autofocus yes (continuously working or one-push)
Manual focus yes
Built-in LCD preview monitor 70 x 45mm (2.7" x 1.8")
Text enhancement function ( in color) yes
Live to Freeze comparison (on two monitors or screens with just one Visualizer) yes (RGB and DVI output can output different signals. One can output a live
image and the other one a "freeze" image)
On screen menu and on-screen help yes
Upgradeable firmware (through software downloads from internet) through serial (RS232), USB or Ethernet (LAN) port
Lens / Zoom 48 x zoom (12 x optical + 4 x digital), individual speed zoom wheel
Max object height on working surface 230mm (9.6") in tele position, 370mm (15") in wide position
Max. pick-up area on working surface Length: 283mm (11.1"), Width: 384mm (15.1")
Max. pick-up area on working surface in Image Turn mode Length: 384mm (15.1"), Width: 283mm (11.1")
Min. pick-up area on working surface (in full resolution, with optical zoom) 33 x 25 mm (1.3" x 1")
Min. pick-up area on working surface (with digital zoom) 8 x 6 mm (0.3" x 0.25")
Max. pick-up area outside of working surface unlimited
Depth of focus on small object (42 x 33 mm) 10mm (0.4")
Depth of focus on large object (360 x 270 mm) 260mm (10.2")
Disturbing stray light or blinding of audience or speaker none
Light source halogen spot light with diffuser lens and glare protection, vertical rotation
270 degrees, lamp lifetime 4500 hours 35W, 12V
USB software for image capture and controlling included, for Windows 98/2000/ME/XP, Twain compatible, allows
for scanning images in a fraction of a second, for still images and motion
Reflection free area on working surface whole working surface, 320 x 300mm (12.6" x 11.8")
Recordings outside of the working surface yes (behind and in front of the unit)
Image flip yes (for recordings in front of the unit)
Turntable mounted (with table lock bolt, to attach the unit to a table) yes (for horizontal pan shots outside of the working surface)
Intelligent folding system articulated arm, 1-step set up
User programmable presets 3 (plus 8 fixed presets trough RS232)
Special working surface for transparencies yes, 320 x 300mm (2.6" x 11.8")
Slide pick-up through integrated slide lightfield
Computer input / Input switch yes (RGB 15-pin D-Sub/VGA plug)
Built-in digital Scaler for the computer input yes (processes the signal for RGB-, DVI- and Video output)
Image memory 9 pictures (with battery backup, for loss of power)
"Show all" function yes (displays all 9 pictures of current memory as one split image)
Alternative Image display: negative image / negative-blue image / black and white image
PAL / NTSC video output S-video (Y/C) converted Progressive Scan, 4-pin plug
RGB output 15-pin D-Sub/VGA-plug
DVI output (HDMI compatible) DVI-D (digital)
USB port / standard USB 2.0 (also compatible with USB 1.1)
Ethernet (LAN) port yes, IP-addressable, 10/100 Mbps
RS232 port and serial protocol with position setting and status report 9-pin Sub-D plug
12V output for external lightbox
Dimensions in operation (L x W x H) 395mm x 320mm x 631mm (15.6" x 12.6" x 24.9")
Dimensions folded (L x W x H) 395mm x 320mm x 145mm (15.6" x 12.6" x 5.7")
Weight / Portability 5.1 kg (11 lbs), portable
Infrared remote control yes (with laserpointer)
Power (external power pack on portable units) multi range 100-240 V, weight: 0.3kg (0.6lbs)
Carrying case included (soft case)
Patent numbers / patent pending DE 202 03 785.1, PCT/EP03/01654, PCT/EPEP03/01653
