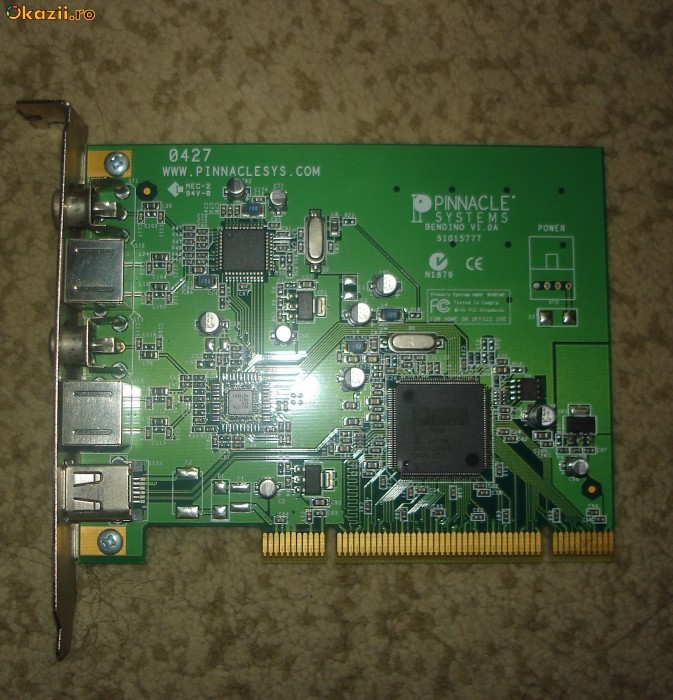

Placa captura video, Pinnacle Bendino V1.0a

Pinnacle este o placa de captura PCI pentru video analogic şi digital.  Placa interna PCI face captura video de la orice sursă analogica sau DV.

Puteţi captura, de asemenea video de la un VCR sau o cameră video analogică sau DV.

Cerinte minime de sistem

• Windows®XP (SP2 or higher)
• Intel®Pentium®or AMD®Athlon®1.4 GHz or higher (2.4 GHz or higher recommended)
• 512 MB RAM (1 GB recommended)
• DirectX®9 or higher compatible graphics card with 64 MB (ATI®Radeon®or NVIDIA®GeForce™3 or higher with 128 MB recommended)
• DirectX 9 or higher compatible sound card (Creative®Audigy®or M-Audio®recommended)
• 1 GB of disk space to install software and 3+ GB to install bonus content
• 1 PCI slot
• DVD-ROM drive to install software
• Optional:

• CD burner for creating Video CDs or Super Video CDs (S-VCDs)*
• DVD burner for creating DVDs*
• Sound card with surround sound output required for preview of surround sound mixes**

Inputs & Outputs

• Composite video input/output (RCA connector) PAL, SECAM (input only), NTSC
• S-Video input/output (mini-DIN connector) PAL, SECAM (input only), NTSC
• IEEE 1394 In/Out connector (6-pin type)

Analogue Video Capture to Computer

• Video format: PAL/SECAM (SECAM input only)
• Frame rate PAL: 25 frames per second/50 fields per second
• Frame rate NTSC: 30 frames per second/60 fields per second
• Frame size PAL: 720x576
• Frame size NTSC: 768x480
• Compression: MPEG-2, MPEG-1, DV, MJPEG (Userselectable. Available real-time capture formats depend on CPU speed.)

Video Playback from Computer

• Analogue PAL/NTSC output
• DV (IEEE 1394) output to camcorder 25 Mbit/s. Full camera/device control support

Import Formats

• Video: DV, AVI MPEG-1, MPEG-2*, DivX®*, MPEG-4*, 3GP(MPEG-4*), WMV, Non-encrypted DVD titles*
• Audio: WAV, MP3
• Graphic: BMP, JPG, PCT, TGA, TIF, WMF

Export Formats

• Video CD (VCD) or S-VCD* with optional CD burner (CD-R or CD-RW)
• DVD* with optional DVD burner (DVD-R, DVD-RW, DVD+R or DVD+RW)
• DV, AVI, DivX®*, RealVideo®8, Windows Media®9, MPEG-1, MPEG-2*, MPEG-4* files
• Apple®iPod®and Sony®PSP™ compatible (MPEG-4*) formats
• Dolby®Digital 2 channel** & 5.1 channel** audio

Package Contents

• 500-PCI Internal Video Capture Card
