PLACA DE BAZA ECS SOCKET FM1 . NOUA . CUTIE . SIGILATA . PRET IMBATABIL

Pret:
180RON
Licitatie expirata la:
24 Februarie 2012 18:26:00
Livrare:
Livrare gratuita in Romania
Localitate:
Bucuresti


PLACA DE BAZA ECS SOCKET FM1 . NOUA . CUTIE . SIGILATA . PRET IMBATABIL
Data anuntului: 25 Ianuarie 2012 18:26:05

-VAND PLACI BAZA ECS SOCKET FM1 . NOI . CUTIE . SIGILATE

-OFER GAR 6LUNI. TREBUIE SA PRIMESC SI PROCESOARE PE SOCKET FM1 IN CURAND (A4 3300,A4 3400,A6 3500) . MULTUMESC


ECS newly emerged A55F-M2 in AMD FM1 Socket
A55F-M3 is a combation of AMD FM1 intergrated with A55 chipset. It features with Dual-Channel DDR3 up to 32 GB and supports UVD3.0, DirectX 11 3D graphic, SATA 3Gb/s and USB 2.0. A55F-M3 is absolutely the best choice for family and commercial use.

CPU º Socket FM1 for AMD A series/ E Series/Athlon Quard-core/Athlon Dual-core/Sempron Dual-core processors
º Note: This board supports CPU up to 100W TDP; you can refer to AMD website to check your CPU.
CHIPSET º AMD A55 FCH
MEMORY º Support Dual-channel DDR3 1333/1600/1866* memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 32GB per one DIMM support 16GB
º *Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
º * Please refer to Memory QVL for more information
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 1 x PCI Express x16 slot
º 1 x PCI Express x1 slot
º 1 x PCI slot
STORAGE º Support by AMD A55
    • 4 x Serial ATA 3.0Gb/s devices
    • RAID0, RAID1, RAID10 configuration
AUDIO º VIA®VT1705 6-channel audio CODEC
º Compliant with HD audio specification
LAN º Realtek 8111E Gigabit LAN Fast Ethernet Controller
REAR PANEL I/O º 4 x USB 2.0 Ports
º 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x D-sub(VGA)
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin ATX 12V connector
º 1 x 4-pin CPU_FAN connector
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x 3-pin SYS_FAN connector
º 4 x SATA 3Gb/s connectors
º 1 x COM header
º 1 x LPT header
º 1 x Front panel audio header
º 1 x Case Open header
º 1 x Speaker header
º 1 x Clear CMOS header
º 1 x SPDIF out header
SYSTEM BIOS º AMI BIOS with 16Mb SPI Flash ROM
º Support Milti-language BIOS Utility
º Support ECS M.I.B III Utility
º Support eSF
º Support eDLU
º Support eBLU
FORM FACTOR º Micro-ATX Size, 230mm*180mm


Galerie foto

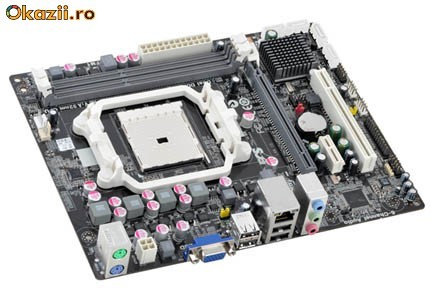

PLACA DE BAZA ECS SOCKET FM1 . NOUA . CUTIE . SIGILATA . PRET IMBATABIL
