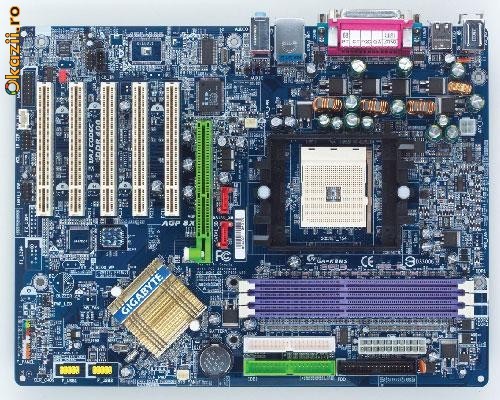

placa de baza GIGABYTE GA-K8NS

Model

Brand GIGABYTE

Model GA-K8NS

Supported CPU

CPU Socket Type 754

CPU Type Athlon 64 / Sempron

FSB 800MHz Hyper Transport (1600MT/s)

Chipsets

North Bridge NVIDIA nForce3 250

Memory

Number of Memory Slots 3×184pin

Memory Standard DDR 400

Maximum Memory Supported 3GB

Expansion Slots

AGP Slots 1 x AGP 4X / 8X

PCI Express x16 None

PCI Slots 5

Storage Devices

PATA 2 x ATA100 4 Dev. Max

SATA 1.5 Gb/s 2

SATA RAID 0/1

Onboard Video

Onboard Video Chipset None

Onboard Audio

Audio Chipset Realtek ALC850

Audio Channels 8 Channels

Onboard LAN

LAN Chipset ICS1883

Max LAN Speed 10/100Mbps

Rear Panel Ports

PS/2 2

COM 2

LPT 1

USB 1.1/2.0 4 x USB 2.0

Audio Ports 3 Ports

Internal I/O Connectors

Onboard USB 2 x USB 2.0 connectors support 4 ports

Physical Spec

Form Factor ATX

Dimensions 12.0" x 9.0"

Power Pin 20 Pin

Features

Features Xpress Installation XpressTM Recovery Q-FlashTM @BIOSTM

Packaging

Package Contents GA-K8NS User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable. NU LICITATI FARA ACORDUL MEU
