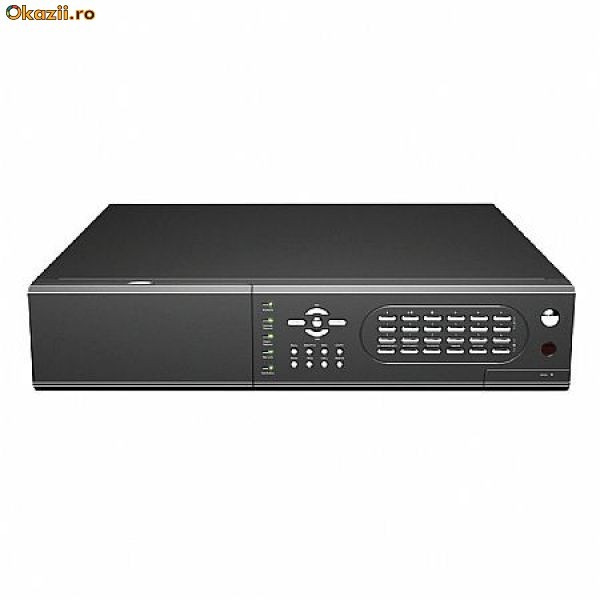

DVR Standalone EPlus - CR-3013-09 EV/P

 Produsul poate fi livrat intre 1 si 30 de zile in functie de marimea stocului!

Pretul afisat contine tva si comisionul okazii.ro.

Va multumim pentru intelegere.

Intrucat suntem o societate comerciala, schimburile nu sunt acceptate;
Toate produsele sunt noi, sigilate si prezinta garantie;
Pretul produselor este fix, si nu se negociaza decat pentru cantitati semnificative;
Costul transportului este suportat de catre client;
Comenzile se proceseaza in timpul programului de lucru, de luni pana vineri intre 09-19 si sambata intre 09-13;
Pentru mai multe detalii folositi forumul produsului.

Features
H.264 Video Compression
Multi-PLEX Operation (Simultaneously Record, Live, Play, Backup, Control, Remote Access)
ADPCM Audio Compression
Bi-directional Audio Capabilities
RTOS (Real Time Operation System)
Support 3 SATA or IDE HDD, up to 500GB
Ethernet Interface for Remote Access, including web access, Email Alert Notification, FTP Video/ Audio File Storage
Support PTZ Control
USB Port for Video/ Audio Backup
Multi-lingual Support
Option: VGA Output
Option: DVD-RW for Video/ Audio Backup


Specifications
VIDEO
• Video input: 9 Channel BNC, 1Vp-p/ 75ohm
• Format: NTSC/ EIA or PAL/ CCIR
• Main monitor:
BNC x 1, S-video x 1, 1Vp-p/ 75ohm
VGA D-SUB 15-pin connector (Optional, see in available models)
• Main-AUX: BNC x 2 (Input x 1, Output x 1), 1Vp-p/ 75ohm
• Call Monitor: BNC x 1, 1Vp-p/ 75ohm
• Call-AUX: BNC x 2 (Input x 1, Output x 1), 1Vp-p/ 75ohm
• Loop-through: 9 Ch. as Video Input, BNC, 1Vp-p/ 75ohm
• Loss Detection: Yes
• Motion Detection: Yes, with configurable detection area & sensitivity

AUDIO
• Input: 2 Stereo Audio - 4 RCA-jack connectors, line-in level (100mV-2Vrms)
• Output: 2 Audio – 2 RCA-jack connectors, line-out level (up to 2Vrms)

RECORD
• Compression Format:
Video: H.264 Baseline
Audio: ADPCM
• Frame Rate (IPS) & Resolution:
NTSC: 60/ 720 x 480; 120/ 720 x 240; 240/ 360 x 240
PAL: 50/ 720 x 576; 100/ 720 x 288; 200/ 360 x 288
• Mode: Manual/ Schedule/ Alarm/ Motion
• Pre-record time: 0 - 60 seconds
• Post-record time: 0 - 60 minutes

DISPLAY
• Resolution: NTSC: 720 x 480; PAL: 720 x 576
• Split windows: 1/ 4/ 7/ 9/ 10/ 13/ 16
• Frame rate: Up to 30 (NTSC)/ 25 (PAL) IPS per display window
• Freeze : Yes
• Sequential Switch: user adjustable
• Digital zoom: x2, x4

PLAYBACK
• Frame Rate (IPS) & Resolution:
NTSC: 30/ 720 x 480; 60/ 720 x 240; 120/ 360 x 240
PAL:25/ 720 x 576; 50/ 720x288; 100/ 360x288
• Search: Date/ Time, Camera, Alarm, Motion & Video Loss
• Operation:
Play, Fast Forward, Backward, Pause, Stop, etc.
Remote I.E. and HEM can also Print, Snapshot

STORAGE
• HDD Interface: 3.5" IDE/ SATA type HDD
• Hard Disk Capacity: Up to 500GB, HDD x 4
• Partitions:
Configurable alarm partition size.
Configurable auto-over write or not
• Backup:
2x USB 2.0 ports for USB 2.0 flash disks, DVD+RW, DVD+R, DVD-R, card readers, HDD, etc.
Internal DVD models: DVD+RW, DVD+R, DVD-R

ALARM
• Input: 16 contacts or TTL/ CMOS signal, polarity selectable
• Output: 2x Normally Open, 2x Normally Closed relay output
• Buzzer: Yes
• Triggering: By Sensor input, Video loss & Motion
• Event Log: Yes

NETWORK
• Ethernet: 1x RJ-45 10/100BaseT Ethernet connector
• Web: Remote setup, monitoring, backup, alarm notification, 1x IE for up to 4 DVRs
• Email: Alarm notification to static or mobile devices
• Video: 1/ 4/ 9/ 16 split-window & SEQ mode for IE and HEM, Dynamic electronics maps for HEM
• Audio: Bi-directional
• Protocol: TCP/IP, HTTP, PPPoE, DHCP, DDNS, TSP
• Remote Users: Up to 5 users simultaneously
• Bandwidth: TCP/IP type dynamic sliding window control
• Remote Stations: PC

CONTROL
• IR: 1x IR remote controller to control up to 4 DVRs
• RS-232: 1x D-type female connector for PTZ
• RS-485/ RS-422: 1x RJ-45 connector for PTZ control

SETUP
• Local: On screen setup via keypad, I/R remote controller and/or RS-485 keyboard controller
• Remote: Setup & upload via Windows application software
• Multi-lingual: Yes

RELIABILITY
• System Recovery: Auto power on after power loss recovery
• Timer: Built-in real time clock
• Dust filter: Industry-designed dust filter for harsh environments
• Security: Multi-level password (3 levels, up to 18 accounts)

SYSTEM
• O.S.: Embedded Linux 2.6
• Multiplex: Multiple Operation - simultaneous record, live, playback, backup, control & remote access

GENERAL
• Operating Temperature: 0°C ~ + 45°C
• Power Consumption: 90~264 VAC, 47~63 Hz, 110W Max.
• Dimensions: 430mm (W) x 330mm (D) x 88mm (H)
• Weight: 5kg (without HDD)
• Supplied Accessories: AC power cord, IR controller, Mouse, Software CD, User Manual
