Phonic Helix Board 12 - 12 Input, 2-Bus Audio Mixer with USB I/O and DFX 24-Bit Effects Processor (16-bit 44.1kHz)

Pret:
500RON
Licitatie expirata la:
03 Martie 2012 11:47:00
Livrare:
Livrare gratuita in Romania prin Cargus Free
Predare personala in Sibiu.
Localitate:
Sibiu


Phonic Helix Board 12 - 12 Input, 2-Bus Audio Mixer with USB I/O and DFX 24-Bit Effects Processor (16-bit 44.1kHz)
Data anuntului: 02 Februarie 2012 11:47:35

Total # Of Inputs 12 Inputs
Mic/Line Inputs 4 Mic: Balanced XLR chs 1 - 4
6 Line: Balanced 1/4" TRS phone
Stereo Line Inputs 2 Stereo: L/R Balanced 1/4" TRS phone stereo chs 5/6, 7/8
In-Line Inputs/Returns No
AUX Sends 2 - 1/4" Phone
AUX Returns 2 Stereo - 1/4" Phone
Inserts 1/4" TRS Phone - channels 1 through 4
BUS (Group) Outputs 2 Buss stereo output only
2 Trk Master I/O Main: Balanced L/R 1/4" phone
ALT I/O USB - Stereo Digital Input and Output:
16-bit / 44.1 kHz
Monitor Outputs CTRL RM: Balanced L/R 1/4" phone
Phones: TRS Stereo Phone
EQ Section Low EQ: 80Hz
Mid EQ: 2.5kHz
Hi EQ: 12kHz
Low cut filter: 75Hz (-18dB/oct)
Solo/Mute Mute available on all input channels
Channel Level Control Rotary Pots
Trim/Gain Control Mic Gain on channels 1-4
Phantom Power +48 V DC
Metering 10 Segment Stereo LEDs
Frequency Response Mic input to any output:
20Hz to 60kHz +0/-1dB
20Hz to 100kHz +0/-3dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio >90dB (ref to +4)
Total Harmonic Distortion (THD) (Any output, 1kHz @ +14dBu, 20Hz to 20kHz)
Hard Disk Space 100VAC, 120VAC, 220-240VAC, 50/80Hz
Dimensions 9.7 x 3.4 x 10.7" (245.4 x 86 x 271.3mm) (WxHxD)
Weight

From Phonic, the Helix Board series mixers are a quality, cost effective solution for anyone in need of an analog mixer and computer front end. The Helix Board series combine analog mixer function and control with USB or FireWire ports. The digital connections enable the stereo mix to be transferred digitally to and from a computer. Software based recording and editing make the Helix Board series a welcome addition in home recording studios, home DJ rigs, church installations and venue sound systems.

The Helix Board 12 features a USB port, 6 input channels and an internal DFX digital effects processor. The input channels are made up of 4 mono line level, 2 stereo line level and 4 microphone inputs. Analog stereo outputs include stereo 1/4" phone Control Room and Main Outputs, RCA Tape I/O are also featured. The internal DFX effects processor provides quality 24-bit Delay, Chorus, Reverb and Distortion effects. The USB port is capable of sending and receiving a stereo digital audio signal at 16-bit 44.1kHz resolution (CD quality).

USB I/OA USB I/O supports 16-bit 44.1kHz stereo digital audio, enabling direct integration to and from computer software.DFX Effects Processor16 high quality 24-bit effects are built in. Among the effects are reverb, delay, chorus and distortion.Mini Stereo I/OIn addition to the USB and analog outputs, stereo mini outputs are provided for connection to small digital recording devices.Channel InsertsChannels 1 through 4 feature 1/4" TRS inserts for direct connection to out board processors such as compressors, EQs, etc.75Hz Low-Cut FilterChannels 1 through 4 feature a 3-band EQ and low-cut filter for eliminating noise and rumble below 75Hz.AUX Send Channel MonitoringThe mixer features 2 Aux sends. Aux send 1 features individual channel monitoring for band mixes in live sound applications.
http://www.youtube.com/watch?v=mqMVeSR2bl4  CLIP VIDEO
Nu licitati inainte sa vorbim.


Galerie foto

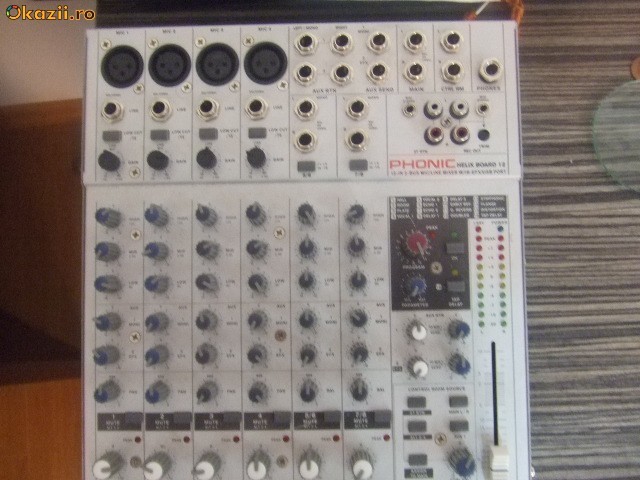

Phonic Helix Board 12 - 12 Input, 2-Bus Audio Mixer with USB I/O and DFX 24-Bit Effects Processor (16-bit 44.1kHz)
Phonic Helix Board 12 - 12 Input, 2-Bus Audio Mixer with USB I/O and DFX 24-Bit Effects Processor (16-bit 44.1kHz) foto mare
