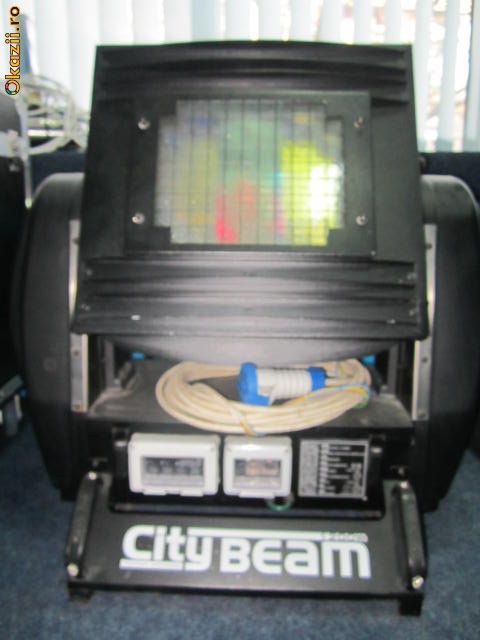

Echipament iluminat exterior, arhitectural StudioDue CityBeam1200

Specification

Lamps

• MSD 1200W Philips
• Lamp life: 2000 hours
• Color temperature: 6000K
• Luminous flux 92.000 lm

Beam Angle (50% intensity):

• 8°-11° without diffuser (1200W)
• 15°-20° with diffuser (1200W)

Optic System

• Full CYM color mixing with high resolution stepper motors.
• Remote or local continuously variation between minimum and maximum angle.

Dimmer

• Mechanical Dimmer 0-100%

IP Rating

• IP 54 (Art. 0004 - 0203)

Auto Mode

• Stand-alone control: auto mode function master/slave (synchro mode) with 27 programs

Power Supply: Magnetic Ballast

• Rated voltage: 230V/50Hz
• On request: 200V/50Hz; 208V/60Hz; 230V/60Hz; 240V/50Hz
• Rated current: 7A (Art. 0004)
• Rated power: 1600W (Art. 0004)

Power Factor Corrector

• Built-in cos Ø 0.9

DMX Channels

• Ch 1 = motors speed
• Ch 2 = cyan
• Ch 3 = yellow
• Ch 4 = magenta
• Ch 5 = Dimmer
• Ch 6 = beam angle
• Ch 7 = remote reset / Lamp off

Dimensions

• 780w x 560d x 740h

Weight

• Art. 0004 49 kgs net
