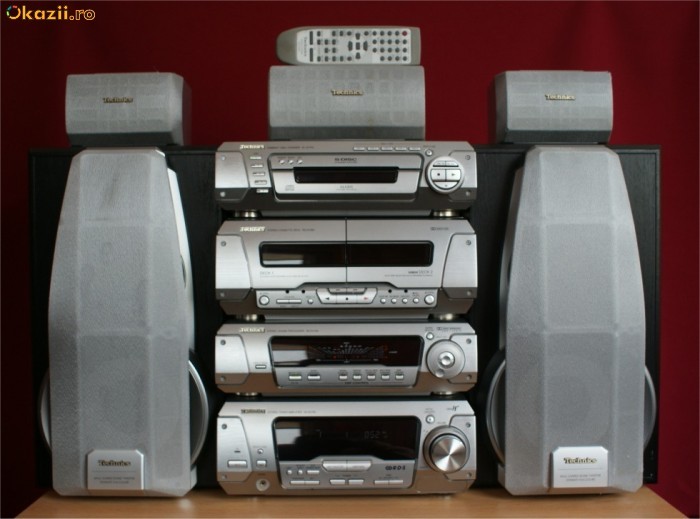

Sistem Technics SC-EH790 Cap de Serie cu WMA/MP3

Technical specifications

SOUND PROCESSOR
∫ EQ/SFP section
MANUAL GEQ
5-Band EQ
Center frequency 70/300/1 k/3.15 k/10 k Hz
Level control n2.0, 4.0, 6.0 dB
EQ/Space mode
4 modes HEAVY, CLEAR, SOFT, HALL
SUPER 3D AI EQ
3 modes AI EQ, SUPER 3D AI 1, SUPER 3D AI 2
∫ Pre-amplifier section
Input sensitivity/impedance
VCR (EXT) 250 mV/15 k≠
VDP (AUX) 250 mV/15 k≠
Output level
VCR REC OUT 150 mV/1.5 k≠
(For Australia and N.Z.)
VIDEO OUTPUT
MONITOR OUT 1 Vp-p/75 ≠
VCR REC OUT 1 Vp-p/75 ≠
∫ DOLBY PRO LOGIC section
PRO LOGIC mode SURROUND
CENTER mode NORMAL
DELAY TIME 20 ms (Fixed)
∫ AV SURROUND section
AV surround mode
SUPER SURROUND(MUSIC, MOVIE)
∫ DSP CONTROL section
DSP control mode SUPER SOUND EQ
CENTER FOCUS
VIRTUAL REAR SURROUND
MULTI REAR SURROUND
SEAT POSITION
∫ Spectrum analyzer section
Display mode NORMAL, PEAKHOLD, AURORA
∫ General
Dimensions (WtHtD) 293k89k270 mm
Mass 1.5 kg
TUNER AMPLIFIER
∫ Amplifier section
Power output (L/R both channel driven)
Stereo Mode
DIN 1 kHz THD 1 %/6 ≠ (High) 2k25 W
100 Hz THD 1 %/8 ≠ (Low) 2k45 W
RMS 1 kHz THD 10 %/6 ≠ (High) 2k35 W
100 Hz THD 10 %/8 ≠ (Low) 2k65 W
PRO LOGIC mode
DIN FRONT
1 kHz THD 1 %/6 ≠ (High) 2k25 W
100 Hz THD 1 %/8 ≠ (Low) 2k45 W
SURROUND 1 kHz THD 1 %/8 ≠ 2k30 W
CENTER 1 kHz THD 1 %/8 ≠ 60 W
RMS FRONT
1 kHz THD10 %/6 ≠ (High) 2k35 W
100 Hz THD 10 %/8 ≠ (Low) 2k65 W
SURROUND 1 kHz THD 10 %/8 ≠ 2k40 W
CENTER 1 kHz THD 10 %/8 ≠ 80 W
PMPO 1 kHz/High 6 ≠, Low 8 ≠
CENT. 8 ≠, SURR. 8 ≠ 3000 W
Total harmonic distortion
Rated power at 1 kHz 1 % (6 ≠)
Half power at 1 kHz 0.1 % (6 ≠)
Load impedance
FRONT (High) 6 ≠
FRONT (Low) 8 ≠
SURROUND 8 ≠
CENTER 8 ≠
DIGITAL S. WOOFER
Center frequency 60 Hz
LEVEL (VOL s20 dB) MID i3 dB
MAX i6 dB
∫ FM tuner section
Frequency range 87.50–108.00 MHz
(0.05 MHz steps)
Sensitivity 1.8 ¨V (IHF usable)
S/N 26 dB 1.5 ¨V
S/N
MONO 70 dB (75 dB, IHF)
Antenna terminal(s) 75 ≠ (unbalanced)

∫ AM tuner section
Frequency range 522–1629 kHz (9 kHz steps)
520–1630 kHz (10 kHz steps)
Sensitivity (S/N 20 dB) 500 ¨V/m
∫ Timer section
Clock Quartz-lock type
Function Play timer (1 time, daily),
Rec timer (1 time, daily),
Sleep (120 min, 30 min intervals)
Setting intervals (Play/Rec)
1 minute–23 hours 59 minutes
(1 min intervals)
∫ General
Power supply
(For the United Kingdom, Australia and N.Z.)
AC 230–240 V 50 Hz
(For Continental Europe and Russia)
AC 230 V 50 Hz
Power consumption 230 W
Standby 0.5 W
Dimensions (WtHtD) 293k118.5k345 mm
Mass 5.3 kg
DVD/VIDEO CD/CD CHANGER
∫ Discs played (8 cm or 12 cm)
DVD-Video/DVD-Audio
DVD-RAM/R (DVD-Video format discs)
Video CD, CD (CD-DA)
CD-R/RW (CD-DA/Video-CD,
MP3/WMA/JPEG format discs)
∫ Audio
No. of channels 5.1 channel (FL, FR, SL, SR, C, SW)
∫ Video
Signal system PAL 625/50, PAL 525/60, NTSC
Output level
Composite video 1 Vp-p (75 ≠)
S-video Y 1 Vp-p (75 ≠)
S-video C 0.300 Vp-p (75 ≠) PAL
0.286 Vp-p (75 ≠) NTSC

∫ Pickup
Beam source Semiconductor laser
Wavelength 658/790 nm
(For Norge)
Bølgelengde 658/790 nm
Laserstyrke Ingen farlig stråling sendes ut
∫ General
Dimensions (WtHtD) 293k89k288 mm
Mass 2.5 kg
CASSETTE DECK
Deck system Stereo cassette deck
Track system 4 track, 2 channel
Recording system AC bias
Bias frequency 100 kHz
Erasing system AC erase
Heads
Deck 1
(Playback head) Permalloy head
Deck 2
(Recording/Playback head) Permalloy head
(Erasing head) Double gap ferrite head
Motors
Deck 1, 2
Capstan drive DC servo motor
Tape speed 4.8 cm/s
Wow and flutter 0.16 % (WRMS)

Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Frequency response (Dolby NR off)
TYPE I (NORMAL) 20 Hz–16 kHz (DIN)
TYPE II (HIGH) 20 Hz–16 kHz (DIN)
TYPE IV (METAL) 20 Hz–16 kHz (DIN)
S/N (Signal levelumax recording level, TYPE II type
tape)
NR off 56 dB (A weighted)
Dolby B NR on 66 dB (A weighted)
Input sensitivity and impedance
REC (IN) 150 mV/23 k≠
Output voltage and impedance
PLAY (OUT) 280 mV/360 ≠
∫ General
Dimensions (WtHtD) 294k118.5k281 mm
Mass 2.1 kg
FRONT SPEAKER
Type 3 way, 3 speakers, Bassreflex
Speaker(s)
Super woofer 17 cm cone type
Woofer 12 cm cone type
Tweeter 6 cm ring shaped dome type
Impedance High 6 ≠
Low 8 ≠
Input power (Music) High 60 W
Low 120 W
Output sound pressure level 87 dB/W (1.0 m)
Crossover frequency 120 Hz, 4 kHz
Frequency range 42 Hz–50 kHz (j16 dB)
46 Hz–36 kHz (j10 dB)
∫ General
Dimensions (WtHtD) 240k412k259 mm
Mass 5.8 kg
CENTER SPEAKER
Type 2 way, 3 speakers, Bassreflex
Speaker
Woofer(t2) 8 cm cone type
Tweeter 6 cm cone type
Impedance 8 ≠
Input power (Music) 160 W
Output sound pressure level 86 dB/W (1.0 m)
Crossover frequency 4 kHz
Frequency range 100 Hz–22 kHz (j16 dB)
115 Hz–20 kHz (j10 dB)
∫ General
Dimensions (WtHtD) 190k99k166 mm
Mass 1.8 kg
SURROUND SPEAKER
Type 1 way, 1 speaker, Closed
Speaker
Full range 8 cm cone type
Impedance 8 ≠
Input power (Music) 70 W
Output sound pressure level 84 dB/W (1.0 m)
Frequency range 130 Hz–20 kHz (j16 dB)
150 Hz–18 kHz (j10 dB)
∫ General
Dimensions (WtHtD) 140k99k118 mm
Mass 0.9 kg

Pentru mai multe informatii accesati manualul de utilizare

http://audio.manualsonline.com/manuals/mfg/technics/scdv290.html?idRes=7569913

Arata si functioneaza foarte bine! Nu licitati aiurea!
