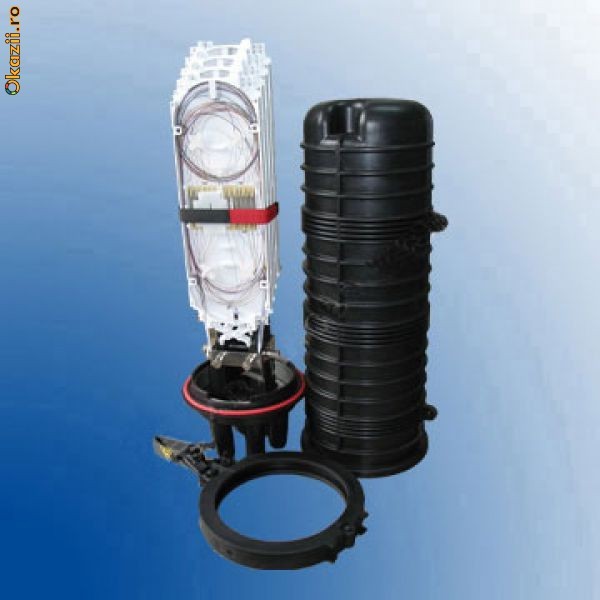

Cutie jonctiuni optica cilindrica Braun Group - GPJ-04V5 / GPJM-R-24 foto

Mărește imagine

Cutie jonctiuni optica cilindrica Braun Group - GPJ-04V5 / GPJM-R-24

Pret:: 57.36EUR

Licitatie expirata la:: 26 Martie 2012 16:05:00
Livrare:: 13 RON prin Posta Romana - Coletarie in in Romania Detalii; Predare personala in Sector 5.
Localitate:: Bucuresti

Cutie jonctiuni optica cilindrica Braun Group - GPJ-04V5 / GPJM-R-24

Data anuntului: 25 Februarie 2012 16:05:00

Produsul poate fi livrat intre 1 si 30 de zile in functie de marimea stocului!

Pretul afisat contine tva si comisionul okazii.ro.

Va multumim pentru intelegere.

Intrucat suntem o societate comerciala, schimburile nu sunt acceptate;
Toate produsele sunt noi, sigilate si prezinta garantie;
Pretul produselor este fix, si nu se negociaza decat pentru cantitati semnificative;
Costul transportului este suportat de catre client;
Comenzile se proceseaza in timpul programului de lucru, de luni pana vineri intre 09-19 si sambata intre 09-13;
Pentru mai multe detalii folositi forumul produsului.

Encloser cilindric etans 24 suduri (1 caseta), max 96 suduri (4 casete), 4 int rotunde,1 ovala, mansoane termo

GPJ-04V5 - Cutie de jonctiune cilindrica 24 suduri pentru exterior

Product details

The product:
1. The fiber optic splice closure consist of cover, pedestal, splice tray, hoop, optical cable storage box(only ribbon cable provided). the splice tray has two different types A and B.
A. ribbon splice tray. The maximum capacity 144 cores per tray
B. single fiber splice tray. The maximum capacity 24 cores per tray
2. The splice closure provide an elliptical port, which can hold two stick optical cables.
3. The cable entry ports are sealed with heat shrinkable tube.
4. This is single fiber splice closure, it provide with one elliptical port and 4 round ports.
Max.capacity :single fiber 96 cores, ribbon:576 cores

The total length	outer diameter	eliptical port	round port
557	cover	hoop	Short axis	Long axis	φ19
	154	226	48	68

The product is available for aerial,underground, duct-mounting

Accessories
1. fixture for fixing on the pole
2. branch card
3. heat shrinkable tube
4. hoop
5. seal ring
6. heat shrinkable sleeve
7. nylon tie
8. earthing wire
9. adjustable retainer for fixing on the pole
10. marking not
11. sand paper
12. exposed wire protective sleeve
13. fixture for fixing on the wall

Optical cable installation
1. saw the entry port for easy inserting the optical cable.
2. clean the dust and other stains on the optical cable (about 1.8m) with clean cloth.
3. insert the optical cable into entry port

Optical cable preparation
1. Strip the protective sheath of optical cable, clean the fillings. On the loose tube, cut off reinforced core which 75mm away From the sheath slice.
2. cut loose tube ,which 35mm away from the cable slices, clean the grease on the optic fiber, insert the fiber into the exposed wire protective sleeve.
3. insert reinforced core into reinforced core fixing screws, and press it tightly, cut off surplus part.
Elliptical port sealing
1. clean the elliptical port and protective sheath with paper or cloth.
2. abrade the elliptical port and protective sheath, then clean the leavings.
3. put heat shrinkable tube 3(b) on the elliptical port then paste a mark on the optical cable which on bottom of the tube.
4. paste another mark 5mm away from the first mark
5. wind the heat alumimun screen around the optical fiber from the second mark.
6. when install second optical cable, please choose heat shrinkable tube according to the size of cable, and insert branch card. (remarks: insert all branch card into heat shrinkable tube)
7. heat the shrinkable tube, until the mucus sliding from the two cables.

Optic fiber installation
1. every splice tray can hold maximum 24 fibers, the margin of the tray can hold 2 sticks exposed fiber protective sleeve,
2. cut off surplus protection sleeve,and fix the protection sleeve on the fiber splice tray with nylon tie.

Optic fiber connecting and storage.
1. connect optic fiber according to the connection requirements.
2. set the splices in the tray grooves, surplus fibers coiled in the tray.
3. check the fibers,and put transparent cover on ,fix it on the splice tray.
Splice closure installation
1. put the cover on the pedestal and seal them with hoop
2. pole-mounting please choose accessories 1 and 9
3. wall-mounting please choose accessories 13
