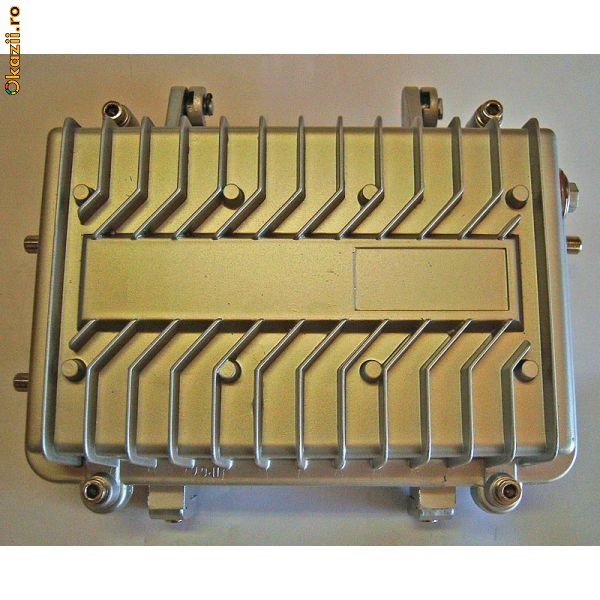

Receptor Optic Maiwei - MW2002(OR)

Pret:: 191.21EUR

Licitatie expirata la:: 26 Martie 2012 16:05:00
Livrare:: 13 RON prin Posta Romana - Coletarie in in Romania Detalii; Predare personala in Sector 5.
Localitate:: Bucuresti

Receptor Optic Maiwei - MW2002(OR)

Data anuntului: 25 Februarie 2012 16:05:00

Produsul poate fi livrat intre 1 si 30 de zile in functie de marimea stocului!

Pretul afisat contine tva si comisionul okazii.ro.

Va multumim pentru intelegere.

Intrucat suntem o societate comerciala, schimburile nu sunt acceptate;
Toate produsele sunt noi, sigilate si prezinta garantie;
Pretul produselor este fix, si nu se negociaza decat pentru cantitati semnificative;
Costul transportului este suportat de catre client;
Comenzile se proceseaza in timpul programului de lucru, de luni pana vineri intre 09-19 si sambata intre 09-13;
Pentru mai multe detalii folositi forumul produsului.

1290-1600nm, receptor optic cu modul Philips -7dBm, conector SC/APC, 2 iesiri RF(1 hibrid) 45-860MHz nivel RF 102dBmV, sursa in comut 100-240V sau telealim 30-90VAC

Maiwei MW-2002(OR) - Optical Node

Optical Node MW-2002(OR) series is a low price, high performance fiber node with one or two RF output (one hybrid for 1 or 2 output ports). It is widely used at node locations of a fiber optic link to convert the optical signal back to RF signal for distribution in the CATV cable plant.

Features

• 45~862MHz two-way broadband platform
• Plug-in slope control circuit, optional split frequency
• Up-stream upgradeable (with reverse transmitting path)
• Optional Reverse Transmitting pad, easy upgrading.
• Philips receiving module, superior reliability and performance
• One GaAs (or Si) hybrids for post-stage amplifier use, with high output level (>100dBuV for 1 output port)
• One or two RF output ports optional
• With separate 5~200MHz up-stream
• Optical power monitoring and high input power alarming
• High efficiency Switch mode power supply
• Easy maintenance, with -20dB test point, LED display for optical power indication.

Specifications

Optical Characteristic

Optical Wave length

1290nm ~ 1600nm

Optical Return Loss

> 45 dB

Response of Receive Module

0.85A/W (1310nm typical)

Max Optical Input Power

2mW(3dBm)

Fiber Type

Single Mode (9/125µm)

Fiber Connector

FC/APC or SC/APC

Return-path Optical output power

1mw/2mw

Return-path Laser Module Type

FP/DFB

Return-path Optical Wavelength

1310±40nm

Return-path RF Band

5 ~ 200 MHz

Return-path Optical Link Flatness

±0.75dB

Optical Receiver Power Monitor Voltage

1V/mV

Optical Transmitter Power Monitor Voltage

1V/mV

Optical Transmitter Bias Current Monitor Voltage

0.03V/mA

RF Characteristics

Pass-band

5-860MHz, 5-750MHz

RF Flatness

Forward: ±0.75dB

RF Return Loss

Forward
     ≥16dB (fH-550MHz)
     ≥14dB (550-860MHz)
Return
     ≥14dB (5-200MHz)

Diplex Frequency (fL/fH)

30/46MHz, 42/54MHz, 55/70MHz, 65/85 MHz

Output Level

103dBuV (0dBm Optical Power Input)

Optical Link specification

C/N ≥ 51dB	@59channel PAL-D Carrier, Standard Optical Transmitter, -1dBm Optical power Receiving Output Level (10KM fiber loss & optical attenuator)
C/CTB ≥65dB
C/CSO≥ 60dB

Test Point

-20dB

Gain Adjustment

0 ~ 10 dB continuous adjustable

Return Path RF Gain

≥ 18dB(24dB Gain amplifier module)

RF Connector

F connector or 5/8"female

DC Power Voltage

60V(35-90VAC)

AC Power Voltage

220V(100-240VAC)

Power Consumption

≤30W

General Specification

Dimension (L x W x H)

240mm x 195mm x 111mm

Weight

≤2kg

Environmental

Storage Temperature

-40°C ~ +70°C

Operating Temperature

-25°C ~ +55°C
