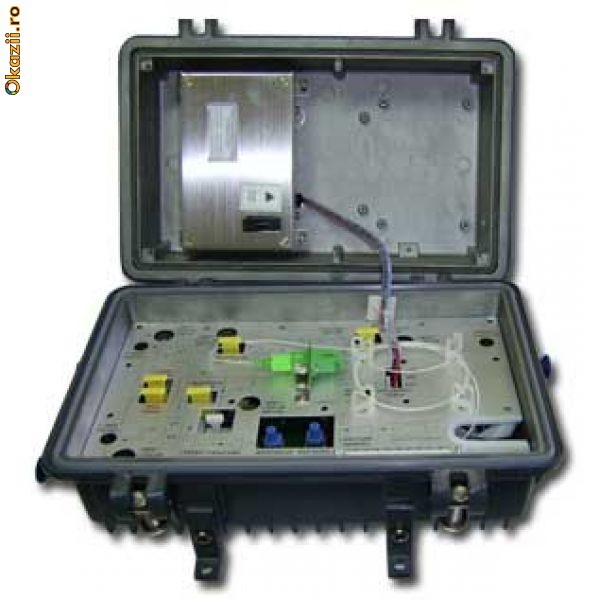

Receptor Optic nextraCOM - WR-8602CE-PIN_GA-8130L foto

Mărește imagine

Receptor Optic nextraCOM - WR-8602CE-PIN_GA-8130L

Pret:: 114.72EUR

Licitatie expirata la:: 26 Martie 2012 16:05:00
Livrare:: 13 RON prin Posta Romana - Coletarie in in Romania Detalii; Predare personala in Sector 5.
Localitate:: Bucuresti

Receptor Optic nextraCOM - WR-8602CE-PIN_GA-8130L

Data anuntului: 25 Februarie 2012 16:05:00

Produsul poate fi livrat intre 1 si 30 de zile in functie de marimea stocului!

Pretul afisat contine tva si comisionul okazii.ro.

Va multumim pentru intelegere.

Intrucat suntem o societate comerciala, schimburile nu sunt acceptate;
Toate produsele sunt noi, sigilate si prezinta garantie;
Pretul produselor este fix, si nu se negociaza decat pentru cantitati semnificative;
Costul transportului este suportat de catre client;
Comenzile se proceseaza in timpul programului de lucru, de luni pana vineri intre 09-19 si sambata intre 09-13;
Pentru mai multe detalii folositi forumul produsului.

1310nm, receptor optic cu DIODA PIN, conector SC/APC, 2 ies RFx102dB?V (1 hibrid Philips)

nextraCOM WR-8602 Series - Field Optical Receiver

WR8602CE-A (B) field optical receiver adopts U.S. E-O Corporation's high-performance optical receive module, front-class adopting Philips low-noise microwave tube amplifier and output-class adopting a power doubler (or push-pull) module amplifier. It is not only performance excellent, but also performance to price rate high, fit for using at middle or small CATV network.

Performance characteristics
• Adopt US E-O high-performance optical receiver module, field water-repellent shell.
• Adopt Philips low-noise microwave tube pre-amplifier circuit and power doubler (or push-pull) output module.
• Built-in continuous adjustable equalizer and attenuator, plug-pull output brancher component, 8-class optical power display.
• Strict anti-thunder system, and high-reliability switch power.
• Suitable for middle or small CATV network.

Link path test condition
Special elucidation: Equipments technique parameter the manual given is according to the test method of GY/T143-2000 CATV system amplitude modulation laser transmitter and receiver enter the net technique condition and measure method, and gained under its prescriptive test condition. Test condition: Test link path is formed of standard fiber and standard optical receiver. Under the condition of prescriptive link loss, set 59 PAL-D imitate TV channels signal at 550MHz, transmit digital modulated signal at the range of 550MHz-750(862) MHz, level of digital modulated signal (8MHz band width) is lower 10dB than of imitate signal carrier wave, when optical receiver input optical power being -1dBm, measure C/ CTB, C/ CSO, C/ N.

Construction explanation

1. Output 2	2. Forward output -30dB test port
3. Output 1	4. Branch (distribute) output plug-in
5. AC60V power over-current protection	6. Duplex filter
7. Reverse attenuator	8. Inner power outlet
9. Power LED	10. Reverse RF amplifier module
11. Reverse return optical transmitter component	12. Forward equalizer
13. Reverse attenuator	14. Reverse RF amplifier module
15. Reverse -30dB test port	16. Forward optical receiver component
17. Optical power LED (8 class)	18. Fiber cable in
19. AC60V power in

Specifications:
Forward Optical Parameter
Input Optical Power	dBm	-7 ~ +3
Suggested work range	dBm	-3 ~ +1
Optical Return Loss	dB	>45
Optical Fiber Connector		SC/APC
Operating Fiber Type		Single Mode
C/N	dB	≥51
C/CTB	dB	≥65
C/CSO	dB	≥60
Frequency Range	MHz	45~862
Flatness in Band	dB	±0.5(45~550MHz), ±0.75(550~750MHz)
Suggested Output Level	dBµV	≥100 (Input 0dB)
Return Loss	dB	≥16(45~550MHz), ≥14(550~750MHz)
Output Impedance	Ω	75
Reverse Transmission Function Parameter
Wavelength	nm	1310±10
Output Optical Power	dBm	1 ~ 5
RF Frequency Band	MHz	5 ~ 65
Flatness	dB	±1
RF Input Level	dBµV	90~95
Optical Fiber Connector		SC/APC
Output Impedance	Ω	75
General
Power Voltage (50Hz)	V	A: (130~265)V B: (30-90)V
Power Consumption	VA	20
Dimension	mm	300x195x130
