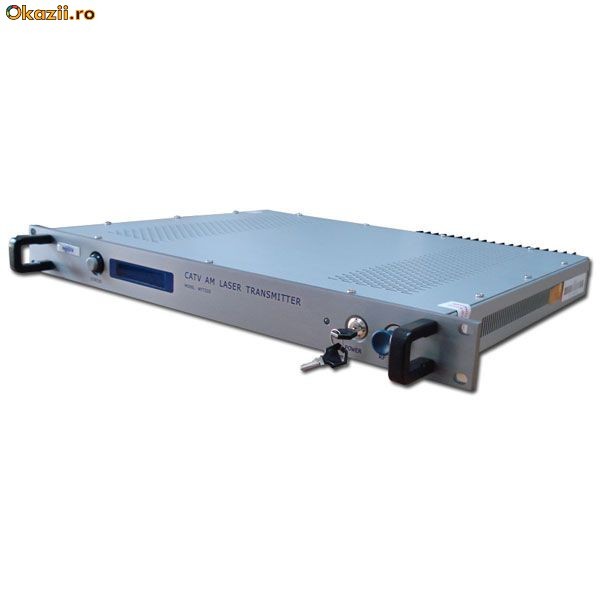

Releu Optic nextraCOM - WT8624II

Pret:: 1 045.27EUR

Licitatie expirata la:: 26 Martie 2012 16:05:00
Livrare:: 13 RON prin Posta Romana - Coletarie in in Romania Detalii; Predare personala in Sector 5.
Localitate:: Bucuresti

Releu Optic nextraCOM - WT8624II

Data anuntului: 25 Februarie 2012 16:05:00

Produsul poate fi livrat intre 1 si 30 de zile in functie de marimea stocului!

Pretul afisat contine tva si comisionul okazii.ro.

Va multumim pentru intelegere.

Intrucat suntem o societate comerciala, schimburile nu sunt acceptate;
Toate produsele sunt noi, sigilate si prezinta garantie;
Pretul produselor este fix, si nu se negociaza decat pentru cantitati semnificative;
Costul transportului este suportat de catre client;
Comenzile se proceseaza in timpul programului de lucru, de luni pana vineri intre 09-19 si sambata intre 09-13;
Pentru mai multe detalii folositi forumul produsului.

Releu Optic pentru rack 19" (receptor optic cu modul Philips + emitator laser Ortel 24mW)

nextraCOM WT8624II - Laser Relay Station

Use as optical signal relay in fiber cable long distance transmission. Easy to operate, it has steady performance and high index. Laser transmitter and laser receiver unifying predigests installation and operation. Room or field can be selected.

Performance Characteristic
• Adopt DFB laser, PHILIPS, PHOTON and E-O PIN diode detector
• Laser receive device: with an RF output, can afford RF signal directly output
• Structure is compact and reasonable, and performance is steady and dependable.
• Field model built-in big power thermostat may allow work environment difference in temperature up to 40°C
• Suitable for using as long-distance transmission optical relay (compensation).

Specifications:
Optical Receiving parameter
Receiving Optical Power	mW	0.3~1.6 (-5dBm~+2dBm
Optical Connector		FC/APC
RF Parameter
Operating frequency band	MHz	45-860
Flatness in band	dB	±0.75
Output level	dBαV	≥96 (-2dBm Input)
Range of Adjusting Level	dB	0~10
C/N	dB	51
C/CTB (84CH)	dB	68
C/CSO (84CH)	dB	66
Return Loss	dB	≥14
Output impedance	Ω	75
Optical Transmitting Parameter
Optical Power	mW	24-25
Optical Link	dB	13.8
Optical Wavelength	nm	1310±10
Optical Connector		FC/APC (SC/APC, SC/UPC)
Channels		84
C/N	dB	51
C/CTB	dB	65
C/CSO	dB	60
Laser	dBαV	96~99 (it depends on Laser)
Flatness in Band	dB	±0.75
General
Consumption	(W)	30
Voltage	(V)	~(110~265) V (50Hz)
Operating Temperature	°C	0~45
Dimension	(mm)	483x385x44

Principle drawing

Product structure

1. Controlling switch	2. LCD Display
3. LED Display	4. Lock (Operating Laser)
5. Input level check (-10dB)	6. RF Output
7. Electricity Adjust ATT	8. Laser Output connector
9. Laser Receiving Connector	11. Long Distance Check Connector
12. Power Supply Connector	13. Earthing
