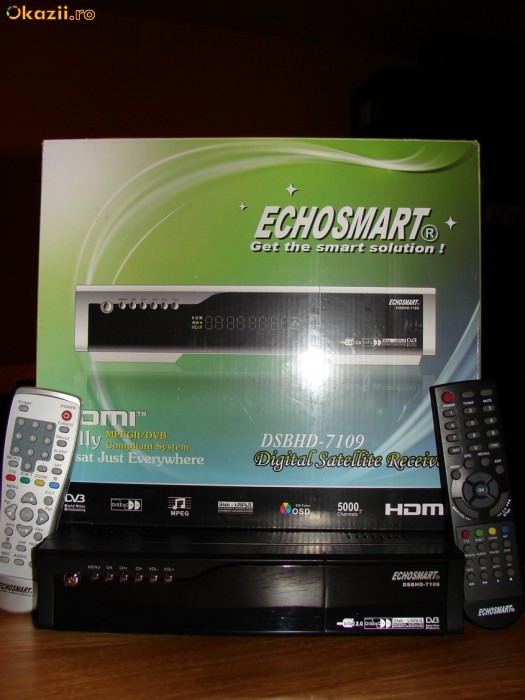

RECEPTOR SATELIT HD ECHOSMART 7109 DE VANZARE

FUNCTIONALITATE 100% PERFECTA, 2 TELECOMENZI, DETALII TECHNICE MAI JOS:

 *Iesire: HDMI 1.2
*DVB-S/DVB/S2/MPEG-2/MPEG-4/H.264/VC-1
*Tip mufa: 2XF, (1 input / 1 loop)
*Frecventa intrare: de la 950 la 2150 MHz
*Nivel semnal intrare: de la -65 la 25 dBm
*Comutare banda: 22 KHz
*LNB: 13.0 + 0.5 V / 18V + 0.7 V, max 400mA
*Demodulare: QPSK / FEC Coding (DVB prETS 300 421)
*Symbol Rate: 2 < Rs < 45 Mbaud (SCPC/MCPC)
TV SCART
*Iesire video: CVBS/75G
*Banda RGB: 5MHz
*Functia de comutare: 6V -16:9 aspect ratio image (AV Mode); 12V-4:3 aspect ratio image (AV Mode)
*Iesire Audio: "Left, Right" / 600 Q
*Nivel: 1.0V rms +/-2dB into 10kO
AUDIO / VIDEO
*Decompresie Audio: MPEG-1, MPEG-2, MPEG2 AAC, MPEG4 AAC, aacPLUS WMA
*Iesiri audio: Stereo Channel / Dual Mono / Joint Stereo / Mono
*Decompresie Video: MPEG-2/H.264/VC1,MPEG2MP@HL,MP@ML,AVC HP@L4
*Video buffer: 64 Mbits of SDRAM is provided
*Iesire video: PAL-25 FRAME @ 720 x 576 NTCS-30 frame @ 720x480
*Format video: 4:3, 16:9
*Rezolutie video: Max. 1920 x 1080 50 Hz & 60 Hz
