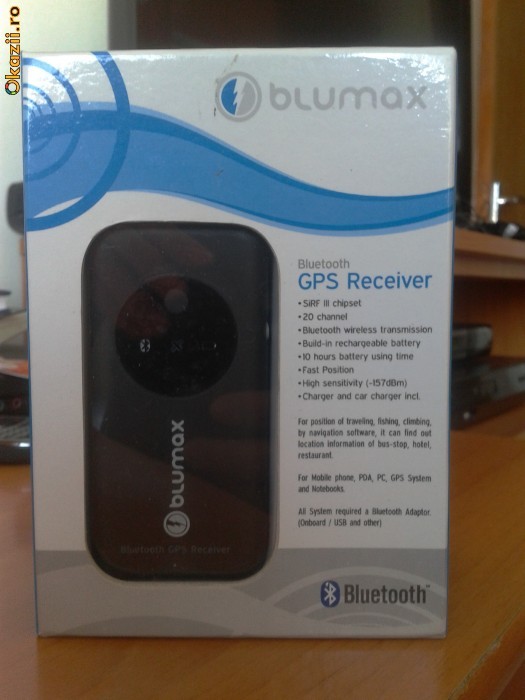

Blumax Bluetooth GPS-101 Receiver

Function:
• Adopts high sensitivity SiRF Star III chip.
• Fast position cold start in less then 45 sec.
• 20 GPS channel quick receive GPS signal, quick position in very weak GPS satellite signal area.
• Bluetooth V 2.0 easy to connect with mobile phone with Bluetooth function or PDA etc.
• Built-in battery can ensure built-in FLASH memory backup trace data and quick position.
• Full compatible with Bluetooth SPP.
• Supports A-GPS.
• Built-in rechargeable charging battery, ensures normal working over 9 hours.
• Three colors of LED indicate Bluetooth, GPS and battery charging state respectively.
• With a magnet easy to fix on dashboard of car.

Performance:
• Channel: SIRF Star 20 channels
• Profile: standard NMEA 0183 profile (V.3.01): GGA, GSA, GSV, RMC, VTG, ZDA (agrees default setting: RMC, GGA)
• Transmission baud rate: 57600
• Working frequency: L1, 1575.42 MHz
• Data: support NMEA 0183 v2.2 data profile
• Fastest update rate: 1 Hz
• Sensitivity acquire: -155 dBm
• Trace: -159 dBm
• Hot start: 1 sec.(Average)
• Warm start: general: 35 sec
• Cold setup: general: 42 sec
• Researching time: general 0.1 sec
• Position precision degree: RMS: abour 5 m
• Antenna type: built-in antenna
• LED indicator light: green indication GPS position state
• Blue indicator light: Bluetooth connection state
• Yellow/red double color light: low battery and charging state

Battery and charging time:

• Battery type: rechargeable Li-polymer battery
• Battery capacity: 3.7V 850mAh
• Normal charging time: 2 hours

Power:

• Power supply: DC 5V
• Power comsuption when Bluetooth is connected - 102 mA in GPS acquiring, 98 mA in GPS tracking, 100 mA (avg.)
when Bluetooth is pairing - 130 mA in GPS acquiring, 126 mA in GPS tracking
• Power saving mode auto power OFF after Bluetooth being disconnected for 5 minutes
• Low voltage warning red LED ON when battery has only 20 minutes power left

Dynamics:

• Speed fastest: 515 m/sec
• Height highest: 18,000 m
• Accelerated speed: 4G

Bluetooth:

• Version V2.0 + EDR
• Connecting interface Bluetooth SPP
• Working distance Class 2, up to over 10 meters
• Modulation: FHSS / GFSK
• RF channels: 79
• Output sensitivity: -80 dBm
• Baud rate: 57600
• Output PWL: 4 dBm

Specification, dimensions and working conditions:

• Dimension: about 90(L) x 45 (W) x12,5 (H) mm
• Working temperature: -10 °C to + 60 °C
• Working relative humidity: 5% ~ 95%

Package content:

• BLUMAX GPS receiver.
• Car charger
• 240 V Main charger (AC Power Adapter)
• Manual (English)
