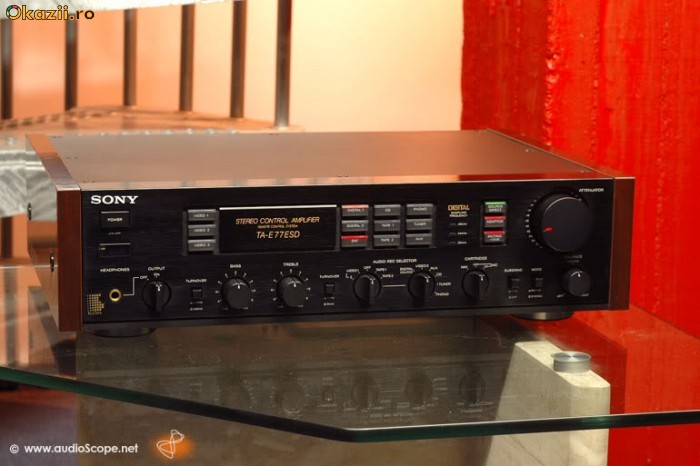

Preamplificator Sony TA-E77ESD

AUDIO SPECIFICATIONS

Total harmonic distortion: 0,001% (at rated 20-20,000 Hz output)

Intermodulation distortion (60 Hz : 7 kHz = 4:1): 0,001% (at rated output)

Residual noise: Less than 10μV (network A)

Requency response:

PHONO MM: RIAA equalization curve ±0,2 dB

TUNER, CD, TAPE, VIDEO, ADAPTOR IN: 3 Hz - 300 kHz +0 -3 dB

Input sensitivity:

PHONO MC 3 ohms: 0,17 mV, 100 ohms,

PHONO MC 40 ohms: 0,17 mV, 1 kohm

PHONO MM: 2,5 mV, 50 kohms

TUNER, CD, AUX, TAPE, VIDEO, ADAPTOR IN: 150 mV, 50 kohms

Max. Input capability (1 kHz):

PHONO (1 kHz, THD 0,003%): 9 mV (MC); 150 mV (MM)

S/N (network):

PHONO MC (0,5 mV): 83 dB

PHONO MM (5 mV): 95 dB

TUNER, CD, AUX, TAPE, VIDEO, ADAPTOR IN: 105 dB

Output voltage impedance:

REC, VIDEO, DAT, ADAPTOR: 150 mV 1 kohm

HEADPHONES: 45 milliwatts at 8 ohms (accepts low and high impedance headphones)

PRE OUT: 1,5 V, 47 ohms G-AEP model : 1,5 V 200 ohms

Tone controls:

BASS at 100 Hz: -4 +3,5 dB (turnover freq. 200 Hz); -6 +7 dB (turnover freq. 400 Hz)

TREBLE at 10 kHz: -7,5 +7 dB (turnover freq 3 kHz); ±3,5 dB (turnover freq. 5 kHz)

Subsonic filter: 6 dB/octave attenuation below 15 Hz

VIDEO SPECIFICATION

Input: Voltage 1 Vp-p, impedance 75 ohms

Output: Voltage 1 Vp-p, impedance 75 ohms

S-Video IN, VIDEO 1, 2:

Luminance signal: Voltage 1 Vp-p, impedance 75 ohms

Chroma signal: Voltage 0,286 Vp-p, impedance 75 ohms

S-Video OUT, VIDEO 1, MONITOR:

Luminance signal: Voltage 1 Vp-p, impedance 75 ohms

Chroma signal: Voltage 0,286 Vp-p, impedance 75 ohms

DIGITAL SPECIFICATIONS

Digital input (phono jacks): Impedance 75 ohms, input level (sensitivity) 0,5 Vp-p ±20%

Digital output: Impedance 75 ohms, output level (voltage) 0,5 Vp-p ±20%

GENERAL

System: low-noise FET high gain NFB type equalizer amplifier, low noise FET, Double-stage differential, push-pull output, flat amplifier passive type direct tone control

Number of channels: 2 (stereo)

Demodulation (D/A conversion): 16-bit linear

Frequency response: 5 Hz - 20 kHz ±0,5 dB (input digital signal sampling freq. 44,1 kHz, 16-bit operation)

Harmonic distortion: Less than 0,004% at 1 kHz (input digital signal sampling freq. 44,1 kHz, 16-bit operation)

Dynamic range: More than 95 dB ( input digital signal sampling freq. 44,1 kHz, 16-bit operation)

Channel separation: More than 90 dB

Power requirements: 120, 220-240 V AC, 50/60 Hz

AC outlets: 400 W max.

Dimensions: (W x H x D) 470 x 130 x 370 mm, (18½ x 5¼ x 14½ inches)

Weight: 13 kg, (28 lb 11 oz)
