Placa de captura 4 canale

Detalii produs:

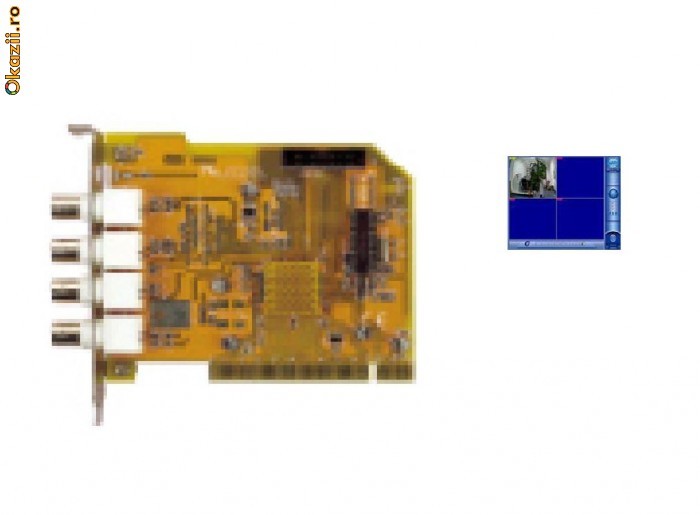

- placa captura, dvr pci, 4 canale;
- MPEG4 software compression;
- display and record resolution 320X240/352X288/640X480;
- 1-4 channels video input 60f per card. Max 4 cards;
- 2 channels audio input from sound card;
- 1 channel analog switch output (optional);
- max 2 channels audio input;
- 120M/h-150M/h hard disk place;
- l Alarm control;
- use alarm box to make alarm function. RS232/RS485 Communication, max 255 channels alarm input/output;
- 8 channels input/output each alarm box;
- automatic record when alarm start up;
- can control automatic record time when alarm start up;
- support channels alarm output, can connect to light, bell, etc.  alarm device;
- support motion detection and alarm area settable;
- automatic record when motion detection start up then display the electronics map;
- l P/T/Z control;
- support more than 50 kinds of decode protocol. Can add protocol for customer;
- support speed dome, matrix controller;
- l Remote control;
- can transmit the video and audio signal through LAN, ISDN, ADSL, DDN, etc.;
- support P/T/Z control through the network;
- support IE browse. Built-in web server;
- replay video and audio signal through network;
- l Record and playback;
- 2-8 channels real-time MPEG4 record;
- selectable schedule record, manual record, motion detect start record, alarm start record;
- search based data, event, channel. Diff speed F.FW and F.FB;
- support frame capture and electronics zoom in/out;
- support Electronics map and watermark;
- l System request;
- OS: windows 2000/XP;
- CPU: P3 1G or higher;
- memory: At least 128M of RAM (256M required for 16 cameras);
- hard disk: 80G;
- mother board: Based on Intel 815/845 chipset or higher;
- VGA card: ATI RAGE 128 or higher;
- windows Directx8.0 or above;

Garantie 12 luni
