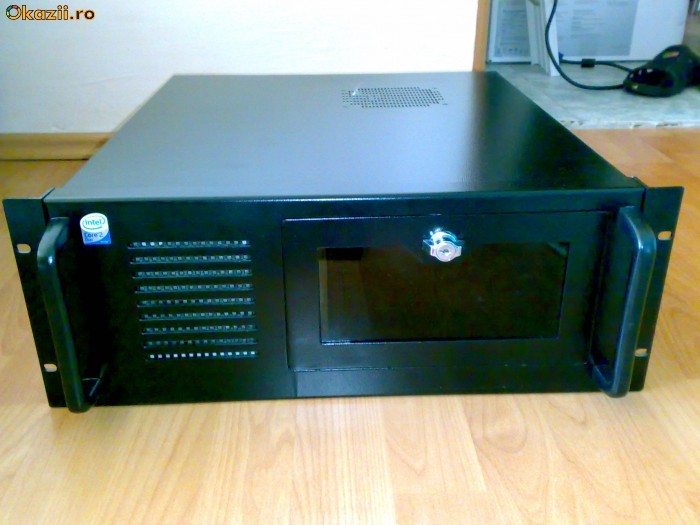

DVR 16 canale profesional NOU

DVR 16 canale profesional NOU

Sistem de inregistrare video digital profesional, suporta pana la 16 camere video.

Are procesor Intel Pentiun Dual Core 1,6GHZ, memorie 512MB, are 4 hard disk-uri in total 1TB - 1024GB.

Suporta Windows 2000/ XP sau Linux

Racirea se face cu 5 ventilatoare.

Placa video Asus EAX1600PRO de 256MB

Placa de captura este Comart XED4020

Placa captura XED 4020

185x109mm; intrari video: 16; iesire TV - afiseaza aceleasi imagini ca si cele afisate pe monitorul de PC; rata totala afisare: real-live: PAL 400fps; rata totala captura:PAL max200fps; rata captura per canal: max12fps; rezolutie: max 704x576; AUDIO: intrari: 16; format intrare analog line-in; tip conector: cablu octopus RCA extern; cablu molex intern; iesire PC speaker only

TOATE COMPONENTELE SUNT NOI.

Se pot accesa LIVE inregistrarile, monitorizare prin internet.

Capacitate de stocare inregistrari cel putin 60 zile, la utilizare normala cu toate cele 16 canale video ocupate.

Detalii tehnice placa captura

XED-4020
Video Input 16 CH
Compression MPEG4
Output TV Output Available (selective 1ch full screen, same as VGA)
Input Mode NTSC / PAL
Connection Type DVI to BNC(16ch) Cable (As default)
Resolution NTSC 352 X 240, 704 X 240, 704 X 480
PAL 352 X 288, 704 X 288, 704 X 576
Screen Division Multi Screen Division Supported
Record NTSC (Display/Record) 480 fps / 240 fps
PAL (Display/Record) 400 fps / 200 fps
Record data size MPEG4 : 2~5 Kbytes
Record Modes Schedule, Continuous, Sensor, Motion Detection, Audio Detection
Network Interface RJ-45 LAN (10 / 100 Base Ethernet)
Protocol TCP / IP, DHCP, ADSL
Program Web-remote, CMS Software(Real-Live View, Search, P/T/Z Control)
Audio Input/ Output Input : 16ch / Output : 2ch(Line Output: 1ch, Speaker: 1ch)
Connection RCA(16ch) Cable (As default)
Sensor DIO(0402 / 0404 / 0804) (Selective)
Serial Interface RS-485 /422, RS-232C (PAN / TILT / ZOOM Control)
Data Backup HDD, CD-RW, USB, DAT, ZIP, AVI etc.
Operating System Window(2000, XP), Linux(Driver, Application) Supported
OSD(On Screen Display) GUI, All language available (DIY)
Features DDNS Comart DDNS server operated (DDNS)
S/W CMS(Central monitoring system) function supported,
Remote setup available
User friendly setup environment
Providing SDK (Software Development Kit)for developers
System Restore Watchdog(Auto Rebooting)
Overlay Hardware overlay (CPU performance is very stable)
Power Consumption 8.5 W 8.5 W 8.5 W
Dimensions 185mm x 109mm 185mm x 109mm 185mm x 109mm
Weight 177 g
