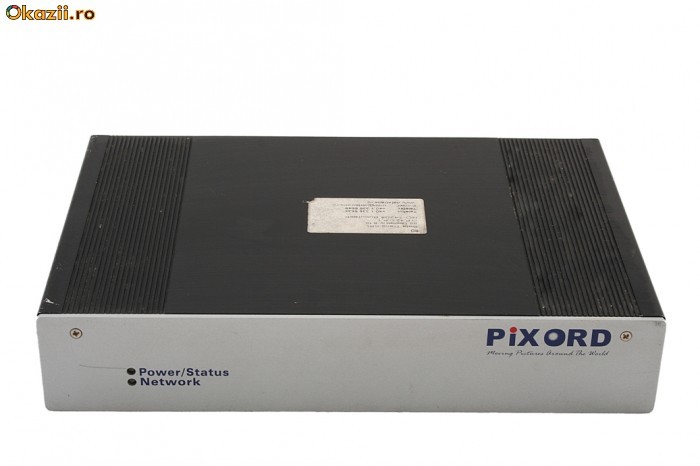

Pixord 4000 Video Server

Pixord 4000 Video Server

Video Input: 4 Channels, 1.0 Vp-p, 75, Composite, BNC, Auto detection NTSC/PAL

Hardware
          CPU: 32 Bits RISC Processor
          ROM: 2M Bytes FlashROM
          RAM: 16M Bytes SDRAM
          WatchDog: Chip to monitor out tolerance system voltage and abnormal program execution
          Two RS-232 serial ports, one for external modem, one for PTZ camera/PC/RS-485 ;
          One RJ-45 for 10 Mbps Ethernet
          Two LEDs to indicate network and power/system status
          GPIO with fully opto-isolated four alarm inputs and one relay output

Network Interface : Ethernet (10/100 Base-T)

Image Compression : JPEG; Motion JPEG

Video Adjustment: Brightness, Contrast, Hue, Saturation, Quality Level adjust

Protocols: TCP/UDP/IP, ARP, ICMP, HTTP, FTP, Telnet, SMTP

Max. Resolution:

          NTSC: 704x480(Single), 352x240(Quad)
          PAL: 704x576(Single), 352x288(Quad)

Performance
         Video through put : Up to 30 frames/ second
         Network through put : Max. up to 800 K Bytes per Second

Event Trigger & Action
         Programmable Event Script with Wizard supported.
         Triggered by: Time(Frequency) / GPIO Input/ Motion Detection
         Action : - Store image to internal buffer
                        - FTP image to remote site
                        - E-mail image to specify account
                        - relay output to control external devices

Installaion: Assign IP address: using ARP/ or Via RS-232 or IP Installer

Software Upgrade
         Local or Remote software upgradable using FTP
         Custom web contents updated via FTP & Telnet

System Requirements: Windows 2000 SP4 or Windows XP/Windows ME/Windows 98, Internet Explorer 6.0,

         DirectX 9.0

Security: Three-layer Password Protection

Operating Temperature: 0°C ~ 50°C

Operating Humidity: 20 ~80 %

Input Voltage: AC/DC switching power adaptor, Input: AC100~240V, output: DC12V/2A

Power Consumption: 7 watts

Dimension: 243 (W) X 44.5(H) X 153 (L) mm

Weight: 0.93 kg, excluding power supply

Nu ma intereseaza schimburi


Pret: 600 RON
