kit wireless CCTV camera supraveghere

Pret:
110RON
Licitatie expirata la:
07 Martie 2012 10:53:00
Livrare:
20 RON prin Posta Romana - Coletarie in in Romania
Predare personala in Brasov.
Localitate:
Brasov


kit wireless CCTV camera supraveghere
Data anuntului: 01 Martie 2012 13:48:00

W208E1
>380 TVL of horizontal definition.
>Micro-camera easy for installation.
>Camera adjustable by manual for the frequency.
>100m transmission distance without block.
>Audio monitoring with microphone in camera.
Function parameters
  Item
Value
  Transmission Frequency   ISM 2,400 MHz~2,483 MHz 4CH
  Modulation Mode   FM
  Unobstructed Effective Range   100m(Without Block)
  Operating Temperature   0℃~ +50℃ / +32℉~ +122℉
  Storage Temperature   -20℃ ~ +60℃ / -4℉ ~ +140℉
  Operating Humidity   85%RH
  CAMERA   TV System   PAL   NTSC
  Validity Pixel   628(H) x 586(V)   510(H) x 492(V)
  Image Device   1/3" OmnVision CMOS
  Horizontal Definition   380TV Line
  Angular Field of View   45° (f=6mm)
  Minimum Illumination   3.0Lux(F1.2)
  Scanning Frequency(H)   15.625KHz   15.734KHz
  Scanning Frequency(V)   50Hz   60Hz
  Power Adapter   DC 8V/500mA
  Dimension   42x35x53mm
  Weight   65g
  RECEIVER   Receiving Sensitivity   ≤-85dBm
  Video Output   1Vp-p@75Ω,S/N>38dB
  Audio Output   10KΩ/200mVp-p
  Power Adapter    DC 8V/500mA
  Dimension   115x80x21mm
  Weight   150g
  Antenna  50ohm SMA
 Intermediate Frequency  480MHz
 Frequency Stabilization  ± 100MHz



Diagram：

NU LICITATI AIUREA



Galerie foto

kit wireless CCTV camera supraveghere

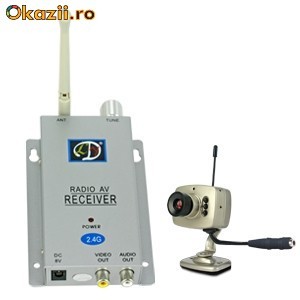

kit wireless CCTV camera supraveghere foto mare
