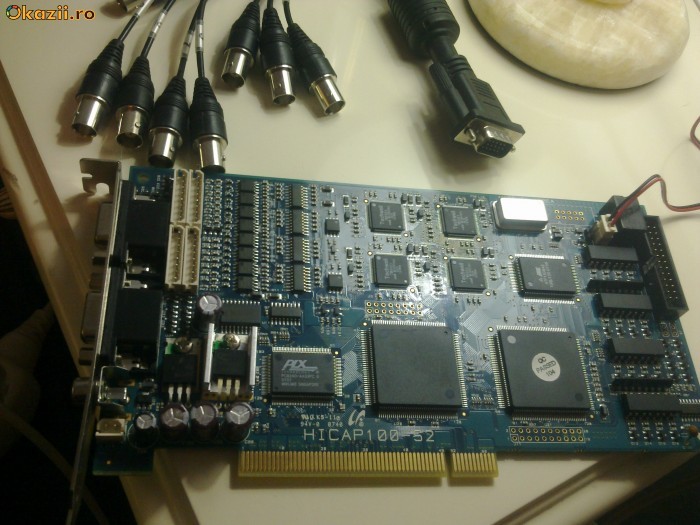

Placa De Captura Philips (DVR)-16 Canale HICAP 100-S2

3. HARDWARE SPECIFICATIONS
* Hardware
Model Name HICAP50 HICAP100 HICAP200
Camera Inputs 8,16ea 8,16ea 8,16ea
Default Resolutions 352*240(NTSC) / 352*288(PAL)
Supported Resolution in
SDK
704*576, 704*480, 704*288, 704*240
640*576, 640*480, 640*288, 640*240
352*288, 352*240, 320*288, 320*240
176*144, 176*120, 160*144, 160*120
Total Display FPS Ave. 50,100,200 Max. 60,120,240
Total Recording FPS Ave. 50,100,200
Max. 60,120,240
Connector Type External BNC Cable / Internal Molex Cable
Sensor In / Alarm Out Sensor Inputs: 16ea, Alarm Outputs: 4ea
Overlay Function Software Overlay
TV Out Function 1 Channel selectable
Watch-Dog Function Yes
Video Compression Both Software MJPEG and Wavelet supported
* Recommended PC Specification
- CPU: Intel Pentium III 866 or faster
(Recommand Intel Pentium 1.8GHZ at least only for Hicap200) Ⅳ
- Mother Board: Intel Chipset Motherboard
(Some VIA Chipset motherboards can cause unexpected operations)
- VGA Card: ATI Chipset AGP type Card
(Other VGA Chipset VGA cards can cause unexpected operations)
- RAM: 128MB or more(Recommand 256MB for HICAP200)
- HDD: 7200RPM or faster
- Supported O/S: Windows98, 98SE, ME, 2000, and XP.
!) AMD CPU will be okay if there is a motherboard without VIA Chipsets. We have noticed that VIA Chipset
provides unstable PCI clocking. ATI video chipset is the one that has no hardware problem with our DVR

MANUAL SI DETALI TEHNICE-http://www.geniuseye.com/pdf/manual/M200/M200_eng_.pdf
