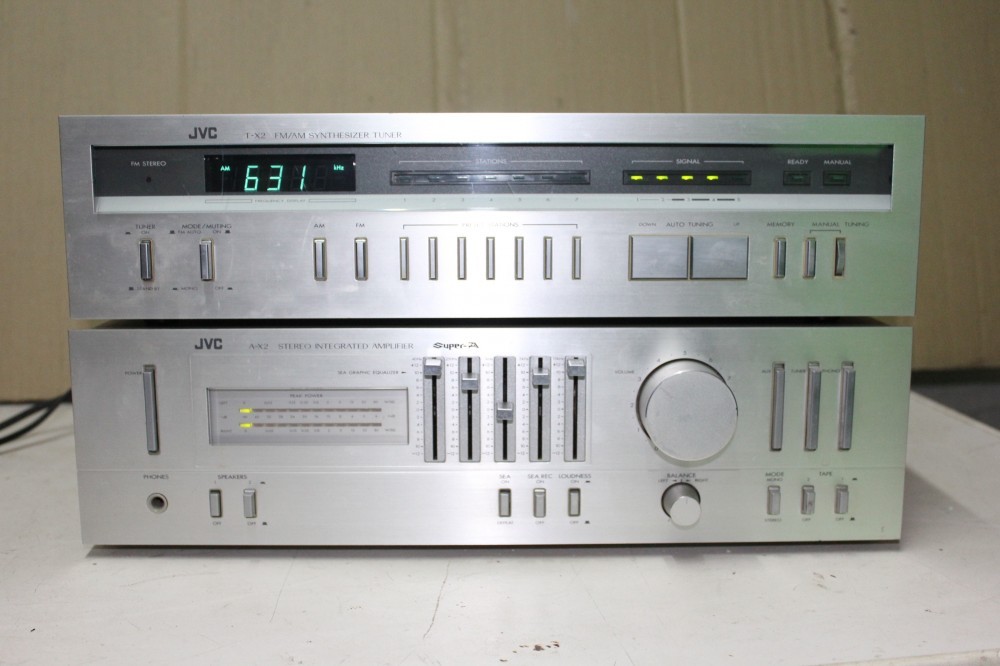

Tuner JVC T-X2 + Amplificator JVC A-X2

JVC T-X2

Description

The T-X2 features a stereo indicator which lights when you are tuned to a stereo broadcast. The tuning frequency is displayed digitally, with five digits displayed for AM reception and five digits for FM reception.

The station indicator, corresponding to the selected station, lights up when one for the station buttons is pressed, and the signal strength indicator displays the strength of the signal received, best reception being obtained when all five LED's are lit.

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.55 to 108 MHz

MW Tuning Range: 531 to 1602 kHz

Sensitivity: 1.4uV (FM), 500uV (MW)

Signal to Noise Ratio: 63dB (FM)

Distortion: 0.3% (FM)

Selectivity: 65dB (FM), 35dB (MW)

Frequency response: 20Hz to 12.5kHz (FM)

Output: 600mV (FM)

Dimensions: 108 x 420 x 258mm

Weight: 4kg

Year: 1980

JVC A-X2

Stereo integrated amplifier

Specifications

Power output: 40 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.007%

Damping factor: 50

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 73dB (MM), 77dB (line)

Output: 150mV (line)

Dimensions: 120 x 420 x 329mm

Weight: 6.6kg

Year: 1980

Arata foarte bine ! Functioneaza foarte bine ! Made in Japan !
