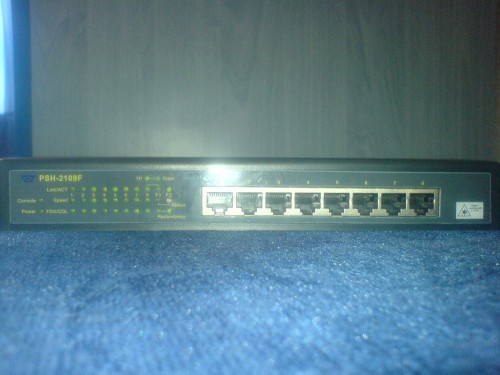

8 Managed Fiber Media Converter Switch1 Port 100Bas PSH-2109F

Descriere

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Disponibilitate: Indisponibil - Vezi produse similare

Specificatii

  • Comply with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX/FX standards
  • Store and Forward Switching Mechanism
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-Negotiation in TP port
  • Support Power/FDX/FX & TP Link Activity/TP Speed LED
  • Comply with IEEE 802.1p Priority
  • Comply with IEEE 802.1q Tag VLAN
  • Comply with IEEE 802.1d Spanning Tree
  • Support QoS Classification based on TOS
  • QoS support with 4 traffic classes
  • Support Q-in-Q VLAN Tunneling
  • Support SNTP Time Server
  • Support IGMP Snooping v1 and v2
  • Support SNMP v1 and v2c
  • Support DHCP Client
  • Support Radius Authentication
  • Support Power Down Trap Management
  • Support SNMP/Telnet/Console/Web Managed interface
  • Support FTP/TFTP Firmware Upgrade





Management
Protocol : SNMP , Console ,WEB
Interface : DB-9 (DTE)

Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX

Interface
10/100Base-T RJ-45 Port x 8
100Base-FX Port x 1

LED
Power, FDX/COL, TP Link/ACT, FO Link/ACT, Status, Redundancy, Speed

MAC table & Memory buffer
MAC Address Table: 2 K
Memory Buffer: 128 K Byte

Forward / Filter Rate
10M: 14,880/14,880pps
100M: 148,800/148,800pps

Power
External Power adapter:
Input AC 120V-240V
Output DC 12V
Power Consumption: 9W

Typical Operation & Storage Temperature
Operation:0°~50°C
Storage Temperature:-20°~60°C
Humidity: 5%~90% non-condensing

Dimension and Weight
245 x 160 x 34mm (WxDxH)
Shipping Weight1.2KG

Emission/Safety
FCC Class A
CE
*For further reports, please contact us for update


Multi-Mode
PSH-2109FC-F1

Single-Mode
PSH-2109FC(SM-30)-F1

Single-Mode-WDM
PSH-2109W2A(SM-20/40)-F1
PSH-2109W2B(SM-20/40)-F1
