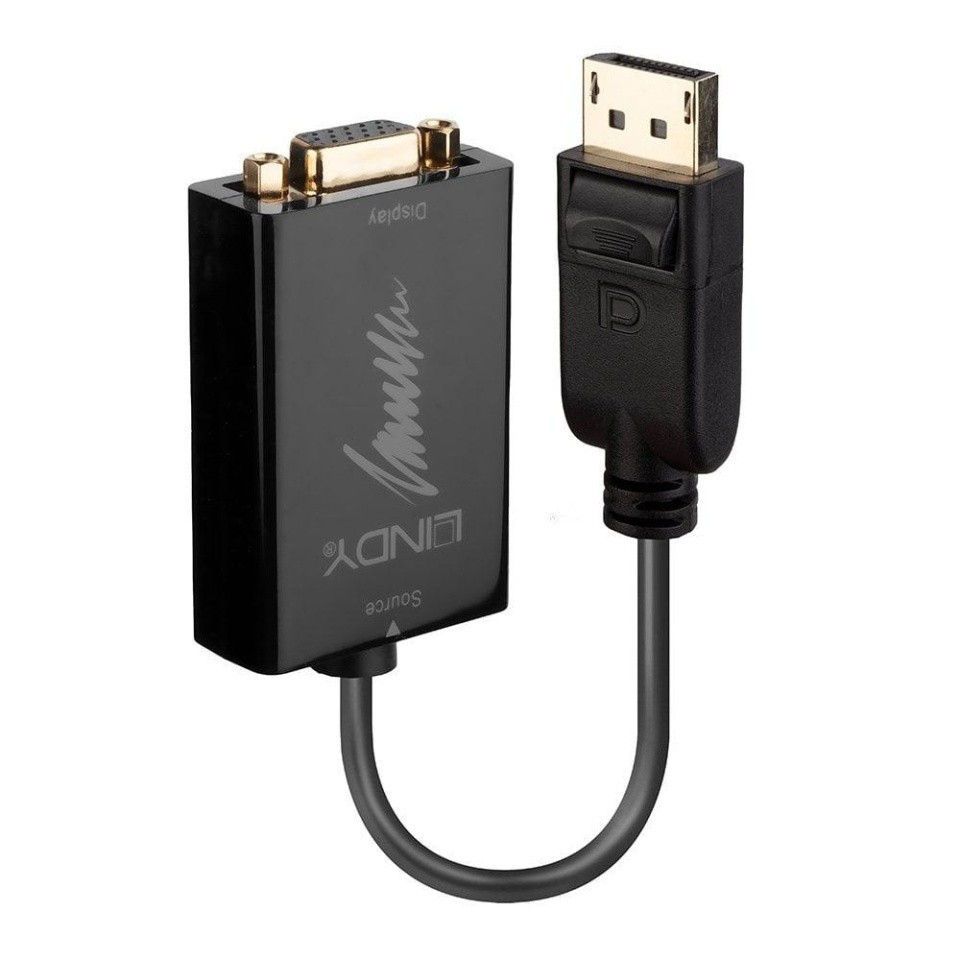

Adaptor Activ Lindy DisplayPort to VGA

Specifications

• AV Interface: DisplayPort to VGA
• Interface Standard: DisplayPort 1.2, VGA
• Supported Bandwidth: 10.8Gbps
• Maximum Input Resolution: 1920x1080@60Hz
• Maximum Output Resolution: 1920x1080@60Hz
• Chipset: ANX9833
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output:VGA Female

• DisplayPort version: 1.2
• Operating relative humidity (H-H): 20 - 90%
• Maximum refresh rate: 60 Hz
• Supported graphics resolutions: 1920 x 1080 (HD 1080)
• Plug and Play: Yes
• Storage temperature (T-T): -20 - 70 C
• Connector 1 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Connector 2 gender: Female
• Connector contacts plating: Gold
• Jacket material: Polyvinyl chloride (PVC)
• Operating temperature (T-T): -20 - 80 C
• Certification: CE, UKCA, FCC, RoHS, REACH
• Connector housing material: Thermoplastic elastomer (TPE)
• Cable length: 0.15 m
• Connector 2: DisplayPort
• Connector 1: VGA (D-Sub)
• Cable diameter: 6.5 mm
• Maximum resolution: 1920 x 1080 pixels
• Bend radius (min): 7 cm
• Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm
• Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm
• Quantity per pack: 1 pc(s)
• Package type: Polybag
• Data transfer rate: 10.8 Gbit/s
• Package width: 160 mm
• Package height: 160 mm
• Package weight: 49 g
• Weight: 45 g
• Product colour: Black
• Harmonized System (HS) code: 84733080
• Package depth: 20 mm
• Chipset: ANX9833
