Adaptor convertor serial TTL RS232 USB - PL2303 HX (r.9590H)

Specificații în limba engleză:

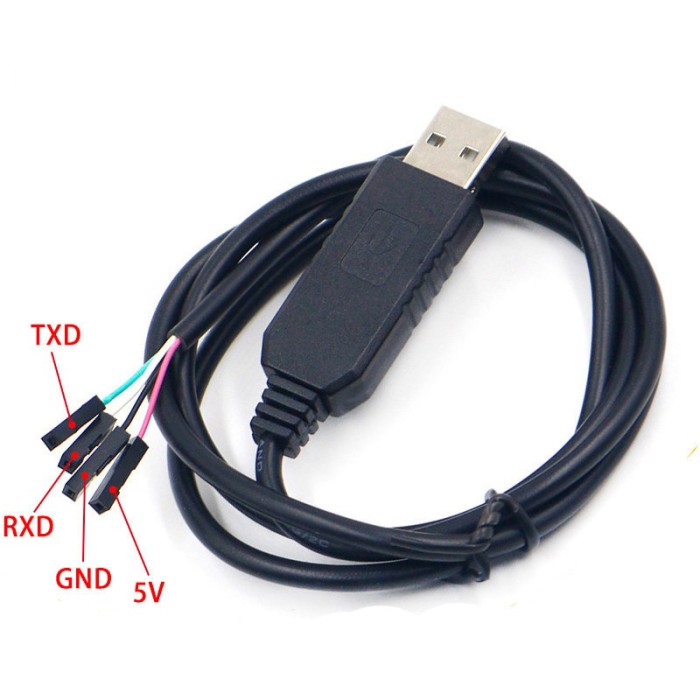

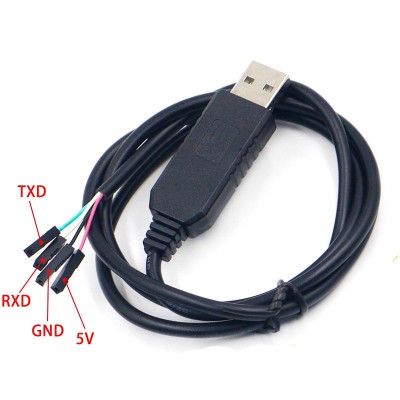

1 - Black:GND

2 - Red:5V

3 - Green:TXD

4 - White:RXD

Features:

l FTDI based USB to TTL Serial Cable are designed using the the standard PL2303HX chipset.

l The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

l RX and TX LEDs indicator

l The cables are available with a 6-way SIL, 0.1" connector

l TTL levels is 3.3V

l The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's PL2303HX USB to Serial
UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect
devices with a TTL level serial interface to USB

l Each TTL-232R cable contains a small internal electronic circuit board, utilising the PL2303HX, which is encapsulated into the USB
connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .

l Cables are FCC, CE, RoHS compliant and are available.

l Cables are available with either a 6-way SIL,0.1”pitch connector, a 3.5mmAudio Jack, an 8 way, keyed 2mmpitch connector
(intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections

l The USB side of the cable is USB powered and USB 2.0 full

Pachetul conține:
• 1 bucată x adaptor convertor serial TTL RS232 USB - PL2303 HX (cod produs: r.9590H)

Se expediază în toată țara prin curierat rapid în sistem ramburs.
