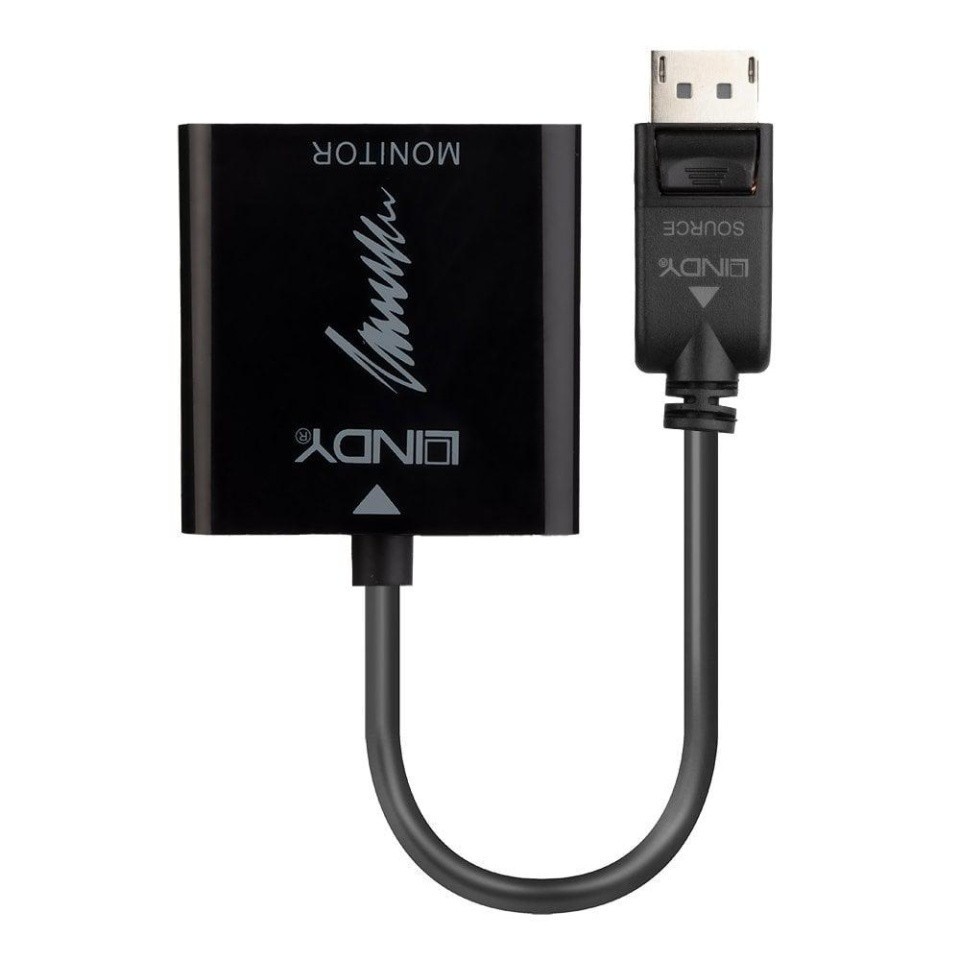

Adaptor Lindy DisplayPort 1.2 - HDMI 2.0

Specifications

• AV Interface: DisplayPort to HDMI
• Interface Standard: DisplayPort 1.2 / HDMI 2.0a
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
• Maximum Output Resolution: 3840x2160@60Hz 4:4:4 8bit
• Chipset: PS176
• HDCP Support: HDCP 2.2
• Supported Audio: Pass-through
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output: HDMI Type A Female

• Operating temperature (T-T): 0 - 70 C
• HDCP version: 2.2
• DisplayPort version: 1.2
• Colour depth: 8 bit
• HDCP: Yes
• Operating relative humidity (H-H): 10 - 90%
• Maximum resolution: 3840 x 2160 pixels
• Supported video modes: 2160p
• Storage temperature (T-T): -20 - 70 C
• Cable length: 1.5 m
• Connector 2: HDMI Type A (Standard)
• Connector 1 gender: Male
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Connector 2 gender: Female
• Connector contacts plating: Gold
• Jacket material: Polyvinyl chloride (PVC)
• Certification: CE, UKCA, FCC, RoHS, REACH
• Converter type: Active video converter
• Colour sampling: 4:4:4
• Connector 1: DisplayPort
• Bend radius (min): 5.5 cm
• Cable diameter: 5 mm
• Connector housing material: Thermoplastic elastomer (TPE)
• Connector 1 dimensions (WxDxH): 31.5 x 20 x 9 mm
• Connector 2 dimensions (WxDxH): 45 x 45 x 15 mm
• HDMI version: 2.0a
• Storage relative humidity (H-H): 10 - 90%
• Compliance certificates: RoHS
• Quantity per pack: 1 pc(s)
• Package type: Polybag
• Data transfer rate: 18 Gbit/s
• Package width: 160 mm
• Package height: 20 mm
• Package weight: 45 g
• Weight: 20 g
• Product colour: Black
• Harmonized System (HS) code: 84733080
• Package depth: 160 mm
• Chipset: PS176
