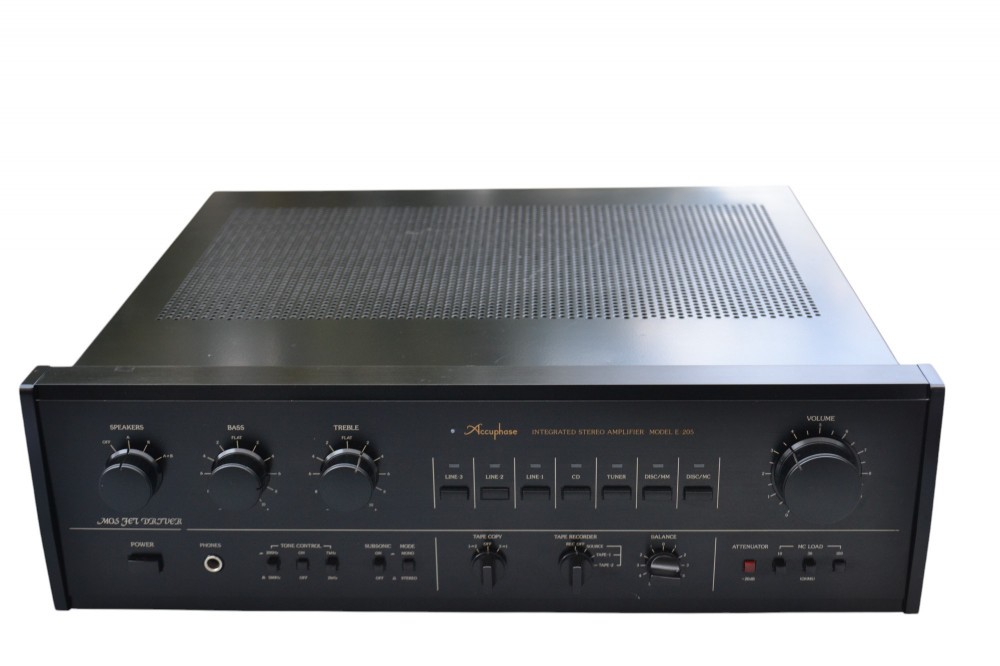

Amplificator Accuphase E 205

Amplificator Accuphase E 205 - 9 intrari, 4 iesiri, impedanta 4-16 ohmi, transformator troidal, 520W consum din retea, MAde in Japan, 2 radiatoare, prospect, mosfet driver, reglaj bass inalte, balance, tone control, subsonic, muting, phono selector, poze reale.

.

General

• Manufacturer: Accuphase
• Model: E-205
• Type: Integrated amplifier
• Years of manufacture: 12/1985 - 1989
• Made in: Japan
• Color: Black or Champagne
• Remote control: no
• Power consumption: 55 / 305 W (idle / rated power)
• Dimensions: 445 x 145 x 370 cm (WxHxD)
• Weight: 14 kg
• Original price approx.: 2'400 DM

Connections

• Number of inputs:
  • 2x Phono (MM/MC): 2.84 mV / 47 kOhm (MM), 0.09 mV / 10/30/100 Ohm (MC).
  • Tuner, CD, 3x Line In, 2x Tape In (Cinch): 90 mV / 40 kOhm (at nominal power).
• Number of outputs:
  • 2x Tape Out (Cinch): 90 mV / 220 Ohm
  • Headphones (6.3mm jack, front): 4 - 100 Ohm
  • 2 speaker pairs (4-16 Ohm)

Technical data

• Continuous power (20-20,000 Hz, 0.02%) according to EIA

16 Ohm: 2x 40 W 8 Ohm: 2x 80 W 4 Ohm: 2x 110 W

• Dynamic power
  • 8 Ohm: 110 W
  • 4 Ohm: 171 W
• Total harmonic distortion: 0.02% (4 Ohm, 20 - 20,000 Hz)
• Attenuation factor: 100 (8 Ohm, 50 Hz)
• Frequency Response:
  • High level:
    • 20 - 20,000 Hz (+0/-0.2 dB) (at rated power).
    • 2.5 - 150,000 Hz (+0/-3 dB) (at 1 watt)
  • Phono: 20 - 20,000 Hz (+0.2/-0.2 dB) (at rated power)

Signal-to-noise ratio: (short-circuited, A-weighted)

• • High level inputs: 103 dB
  • Phono MM: 85 dB
  • Phono MC: 68 dB
• Stereo channel separation:
• Tone control:
  • Bass: yes
    • 200 Hz, ±10 dB at 50 Hz
    • 500 Hz, ±10 dB at 100 Hz

Treble: yes

• • • 2 kHz, ±10 dB at 10 kHz
    • 7 kHz, ±10 dB at 50 kHz
• Loudness: no
• High Filter: no
• Low Filter (Subsonic): yes, 17 Hz (-12 dB/oct.)
• Mute: yes, -20 dB
• Direct/Line-Straight: yes
