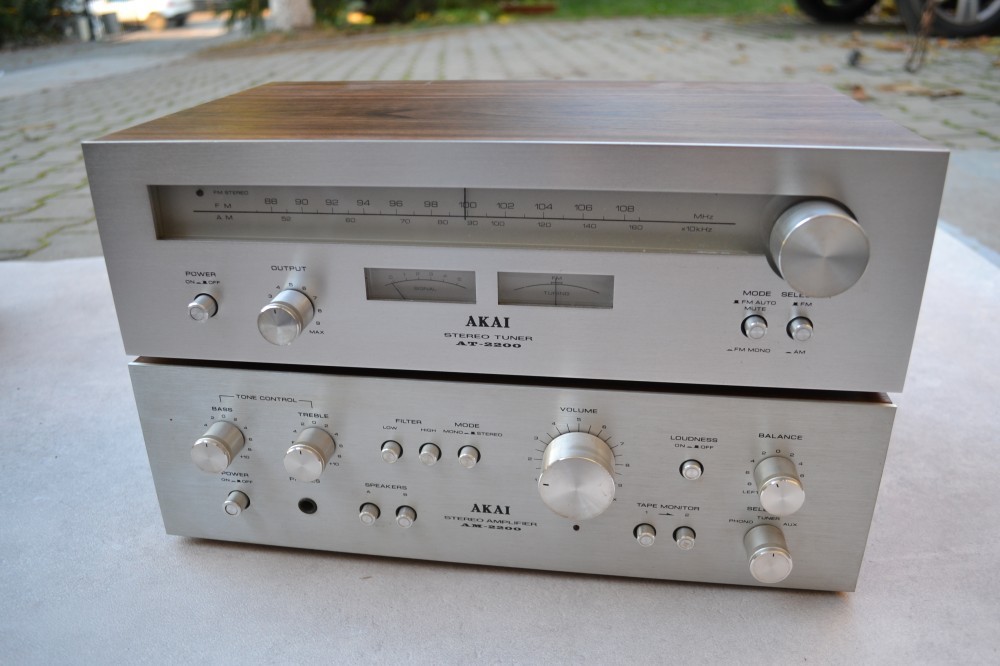

Amplificator Akai AM-2200 CU Tuner Akai AT 2200

Amplificator Akai AM-2200 CU Tuner Akai AT 2200 - 5 intrari, 4 iesiri, impedanta 4-16 ohmi, Made in Japan, carcasa din lemn, filter low/high filter, loudness, iesiri casti, tuner cu scala luminata, output level, FM/AM, carcasa din lemn, poze reala.

General

• Manufacturer: Akai
• Model: AM-2200
• Type: Integrated amplifier
• Years of manufacture: 1977 - 1979
• Made in: Japan
• Color: Silver or Black
• Dimensions (WxHxD): 380 x 125 x 263 mm
• Weight: 5.5 kg
• Original price approx.: 448 DM

Connections

• Inputs:
  • Phono MM: 3 mV / 47 kOhm

Tuner: 150mV / 100kOhm

• • AUX: 150mV / 100kOhm
  • Tape Play 1, 2: 150mV / 100kOhm
  • Tape Play DIN: 150mV / 100kOhm
• Outputs:
  • Tape Rec 1, 2: 150mV / 100kOhm
  • Tape Rec DIN: 30mV / 180kOhm
  • Headphones:
  • 2 pairs of speakers

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2 x 20 W

4 Ohm: 2 x 23 W

• Dynamic power
  • 8 Ohm: 2 x 28 W
  • 4 Ohm: 2 x 33 W
• Total harmonic distortion: <0,5%
• Dämpfungsfaktor: 60
• Frequenzgang:
  • Phono 30-15000 Hz ±1 dB
  • Tuner, AUX, Tape-Monitor 10-60000 Hz ±1 dB
• Signalrauschabstand:
  • Phono >75 dB
  • AUX, Tape >95 dB
• Stereo channel separation: >55 dB at 1 kHz
• Tone control:
  • Bass: ±9 dB at 100 Hz

Treble: ±7 dB at 10 Hz

• Loudness:
• High Filter: -6 dB at 10 kHz
• Low Filter: -6 dB at 50 Hz
• Mute: -

Special Features

• Low and High Filter

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 88 to 108 MHz

MW Tuning Range: 520 to 1605 kHz

Sensitivity: 1.9uV (FM), 180uV (MW)

Signal to Noise Ratio: 70dB (FM), 45dB (MW)

Distortion: 0.5% (FM)

Selectivity: 60dB (FM), 30dB (MW)

Output: 1000mV (FM), 350mV (MW)

Semiconductors: transistors x 5, diodes x 7, Fets x 1, ICs x 3

Dimensions: 380 x 125 x 263mm

Weight: 4.2kg

Finish: silver, black
