Amplificator Denon PMA 232

Name: Amplificator Denon PMA 232
Brand: Nespecificat
SKU: 261616911
Price: 700 RON
Availability: inStock

Livrare gratuita la comenzile de 900 lei

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier rapid - 40,00 Lei Detalii

Estimat livrare:

Marți, 10 Feb.

Cantitate:

Pret:

700,⁰⁰ Lei

Primesti 700 puncte in aplicatie

Produs:

Second Hand, Certificat de garanție 3 luni

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

La predare
Ramburs
Online

Vanzator premium

POWER ZONE HIFI SRL

100% pozitive (din 1147

)

Intreaba vanzatorul

Publicitate

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

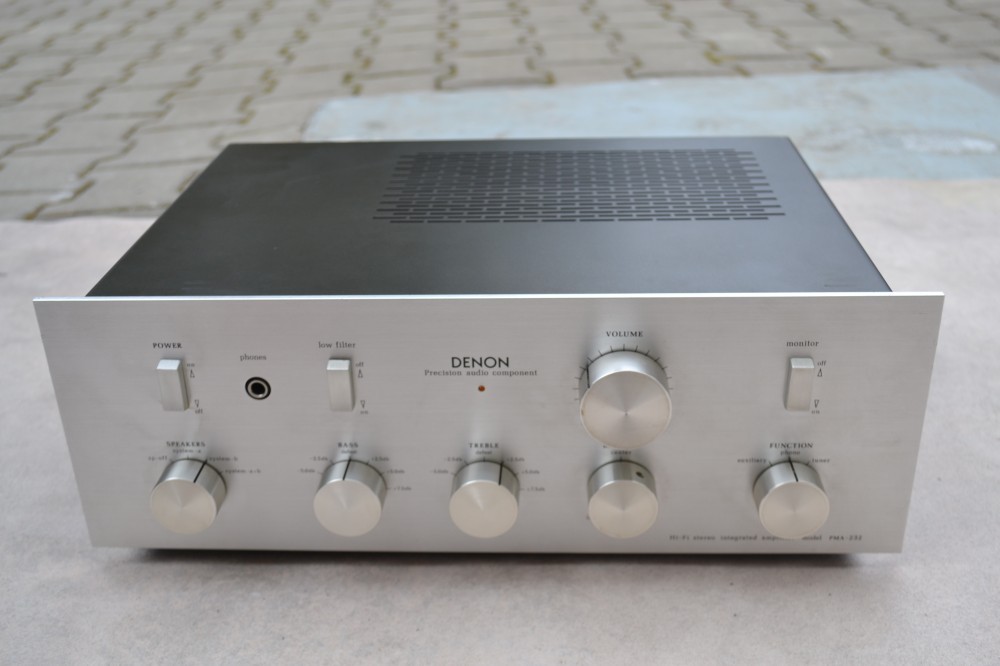

Amplificator Denon PMA 232: 4 intrari, 4 iesiri, made in Japan, 250W, argintiu, reglaje bass, inalte, balance, low filter, becul de power nu se aprinde, poze reale.

Type	Pre-main amplifier
Power Amplifier Unit
Circuit system	DC-DC pure complimentary service OCL circuit
Dynamic Output (IHF)	90W + 90W (4 Ω) 55W + 55W (8 Ω)
Rated Output (Both Channels Driven, Sine Wave Continuous Output)	1 kHz : 50W + 50W (4 Ω) 40W + 40W (8 Ω) 20 Hz to 20 kHz : 40W + 40W (4 Ω) 35W + 35W (8 Ω)
Total harmonic distortion factor	0.03% or Less (1 kHz, Rated Output) 0.08% or Less (2kHz/20kHz, Rated Output)
Intermodulation distortion factor (60 hz : 7 khz = 4 : 1)	0.1% or Less (at Rated Output)
Output Bandwidth (IHF, both channel drives)	5 Hz to 45 kHz
Transmission frequency characteristic	5 Hz ~ 200 kHz + 0 -1dB
Output impedance	0.16 Ω or less
Output terminal	Speaker A/B : 4 Ω ~ 16 Ω Headphone : 4 Ω ~ 16 Ω
Preamplifier Section
Circuit system	Equalizer amplifier section : 3-stage NPN transistor directly connected E-E negative feedback type
Input Sensitivity / Impedance	Phono : 2.3mV/50k Ω Tuner, Aux, Tape : 140mV/80k Ω
Phono maximum allowable input	200mVrms(1kHz)
Rated output (Rec out output level)	Phono:140mV
Maximum power output	13 Vpeak or more
Total harmonic distortion factor	0.03% or Less (at Rated)
RIAA deviation	20 Hz ~ 20 kHz + 0.25 -0.2 dB
Tone control	Bass : + 7.5 -5dB at 100 Hz, 2.5 dB step Treble : + 7.5 -5dB at 10 kHz, 2.5 dB step
Frequency characteristic	7 Hz ~ 125 kHz (Tone Amplifier, Tone Defeat)
Filter characteristic	Low Filter : 30 Hz, 12dB/oct.
<General>
Frequency characteristic	Phono-Speaker : 20 Hz to 20 kHz + 0.25 -0.4 dB Aux-Speaker : 20 Hz ~ 20 kHz + 0 -0.3 dB
Total harmonic distortion factor	Phono-Speaker : 0.1% or less (20 Hz to 20 kHz)
SN ratio (IHF-A, input short circuit)	Phono : 75 dB or more Tuner, Aux, Tape PB : 85 dB or more
Channel separation	Phono-Speaker : 70 dB or more (1 kHz) 55 dB or More (20 Hz to 20 kHz)
Power outlet	Switched : 1 system Unswitched : 1 line
Pwer	100 VAC, 50Hz/60Hz
Power consumption	100W (Electrical Appliance and Material Control Law)
External dimensions	Width 396x Height 147x Depth 281 mm
Weight	9kg
