Amplificator Fisher RS-1022L

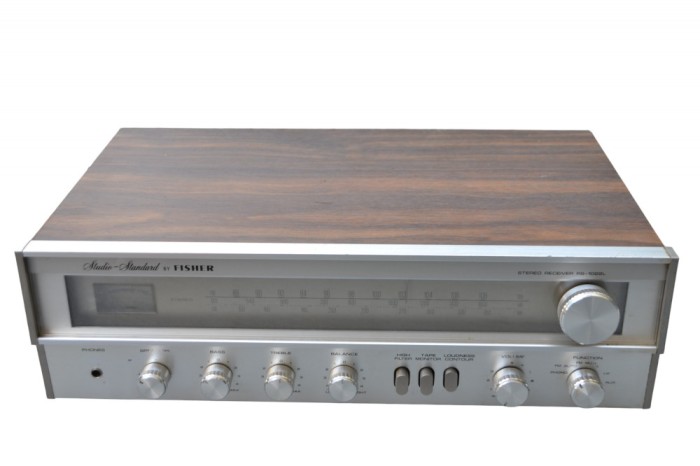

Amplificator Fisher RS-1022L: impedanta 8-16 ohmi, 3 intrari, 4 iesiri, 160 W consum din retea, Made in Japan, argintiu, reglaj bass, inalte, balance, loudness, high filter,  poze reale.

• • Country
  • United States of America (USA)
  • Manufacturer / Brand
  • Fisher Radio; New York (NY)
  • Year
  • 1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147968

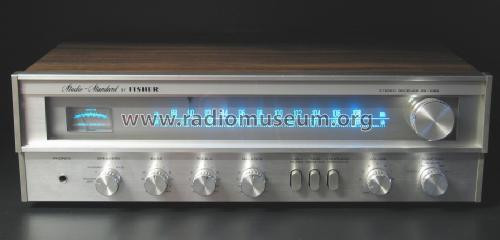

  • PICTURE
  • SCHEMATICS



  Fisher Radio; New RS1022 (1)

  PreviousNext

  Click on the schematic thumbnail to request the schematic as a free document.

   Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RS1022 - Fisher Radio; New York NY
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 120 x 300 mm / 17.3 x 4.7 x 11.8 inch
  • Notes
  • AM/FM-Stereo-Receiver mit 2 x 30 Watt Sinus an 4 Ohm.
    Gehäuseausführung Front Silbermetallic.
  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Source of data
  • -- Original prospect or advert
