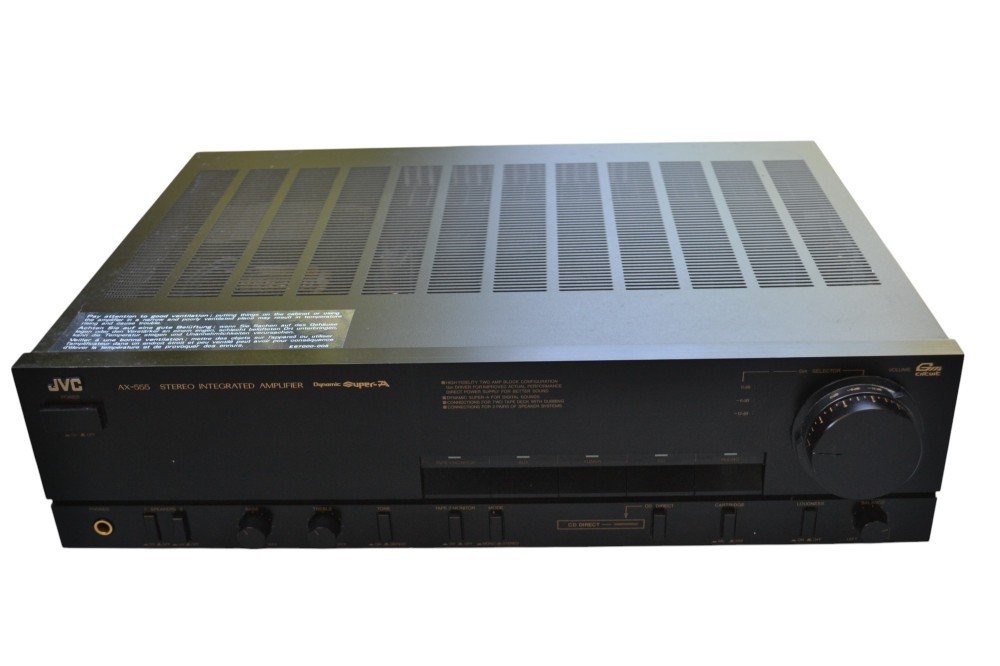

Amplificator JVC AX 555

Amplificator JVC AX 555: 6 intrari, 4 iesiri, impedanta 4-16 ohmi,  culoare neagra, made in Japan, dynamic super A, tone control, loudness, GM circuit, poze reale.

General

• Manufacturer: JVC
• Model: AX-555 BK
• Type: Integrated amplifier
• Years of manufacture: 1988 - 1989
• Made in: Japan
• Color: Black
• Remote control:
• Dimensions (WxHxD): 435 x 125 x 350 mm.
• Weight: 8.5 kg
• Original price approx.: 899 DM

Connections:

• Number of inputs:
  • Phono MM: 2.5 mV, 47 kOhm, 100 mV max.
  • Phono MC: 0.2 mV, 100 Ohm, 8 mV max.
  • Tuner: 200 mV, 43 kOhm

Aux: 200 mV, 43 kOhm CD: 200 mV, 43 kOhm

• • Tape Play 1, 2: 200 mV, 43 kOhm
• Number of outputs:
  • Tape Rec 1, 2: 200 mV, 2 kOhm
  • Headphones: 8 - 16 Ohm
  • 2 pairs of speakers

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 90 W RMS, 20 - 20'000 Hz, < 0,007 %
  • 4 Ohm: 2x 100 W DIN
• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.05 % at rated power
• Attenuation factor: 60 at 8 Ohm
• Frequency response:
  • Phono: 20 - 20'000 Hz, ± 1 dB

High Level: 5 - 100'000 Hz

• Signal to noise ratio:
  • Phono MM: 86 dB
  • Phono MC: 68 dB
  • High Level: 101 dB
• Tone control:
  • Bass: ± 8 dB at 100 Hz

Treble: ± 8 dB at 10 kHz

• Loudness: + 6 dB at 100 Hz
• High Filter:
• Low Filter (Subsonic):
• Muting:
• CD Direct: yes
