Amplificator Jvc AX 700

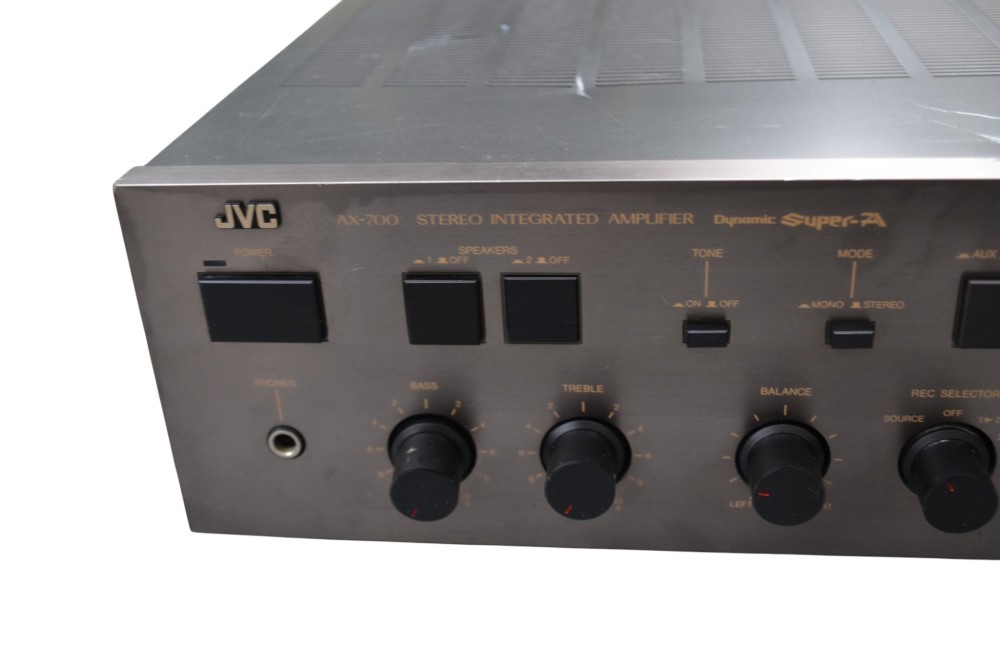

Amplificator JVC AX 700: 6 intrari, 4 iesiri, impedanta 8-16 ohmi, 230 w consum din retea, made in Japan, reglaje bass, inalte, balance, subsonic, phono selector, GM circuit, dynamic, super A, loudness. Poze reale.

Type Dynamic super A pre-main amplifier
Circuit system Equalizer amplifier : ICL, first stage EL-FET
MC/MM High Gain Equalizer Amplifier
Power Amplifier Part : Gm Driver, Dynamic Super A
High-gain power amplifier
Power supply : direct power supply
Rated output (CD, Tuner, AUX, Tape) 120W + 120W (1 kHz, 8 Ω, THD 0.007%)
110W + 110W (20 Hz ~ 20 kHz, 8 Ω, THD 0.007%)
Total harmonic distortion rate (20 Hz to 20 kHz) Phono MM : 0.007% at 7 V output
Phono MC : 0.07% at 7 v output
CD, Tuner, AUX, Tape : 0.007% (8 Ω at rated output)
Intermodulation distortion factor (60 hz : 7 khz = 4 : 1) CD, Tuner, aux, Tape : 0.002% (8 Ω at rated output)
Output bandwidth (IHF, both channel operation) CD, Tuner, aux, Tape : 5 Hz to 60 kHz (8 Ω, THD 0.05%)
Frequency characteristic CD, Tuner, aux, Tape : 5 hz to 150 khz + 0 to 3 db
PhonoRIAA Deviation (20 Hz to 20 kHz) MM : + / - 0.3 dB
MC : + / - 0.5 dB
Damping factor 70 (1 kHz, 8 Ω)
Input Sensitivity / Impedance (1 kHz) Phono MM : 2.5mV/47k Ω
Phono MC : 200 μ V/100 Ω
CD, Tuner, AUX, Tape : 200mV/33k Ω
Phono maximum allowable input (1 kHz) MM:150mV(0.007%)
MC:10mV(0.07%)
Signal-to-noise ratio
Phono MM: 87 dB (IHF A short circuit)
83dB('78 IHF Rec Out)
Phono MC: 69 dB (250 μ V input)
76dB('78 IHF Rec Out)
CD, Tuner, AUX, Tape : 110 dB (IHF A short circuit)
100 dB (' 78 IHF, SPK Out)
Tone control
Bass: 100 Hz, ± 8 dB
Treble: 10 kHz, ± 8 dB
Equalizer subsonic filter 18 Hz, -6dB/oct.
Loudness (Volume -30dB) 100Hz:+4dB
10kHz:+4dB
Power supply voltage 100 VAC, 50Hz/60Hz
Power outlet Power switch interlock : 2 systems
Power switch not linked : 1 system
Power consumption 170W (Electrical Appliance and Material Control Law)
External dimensions Width 435x Height 117x Depth 353 mm
Weight 10.0kg
