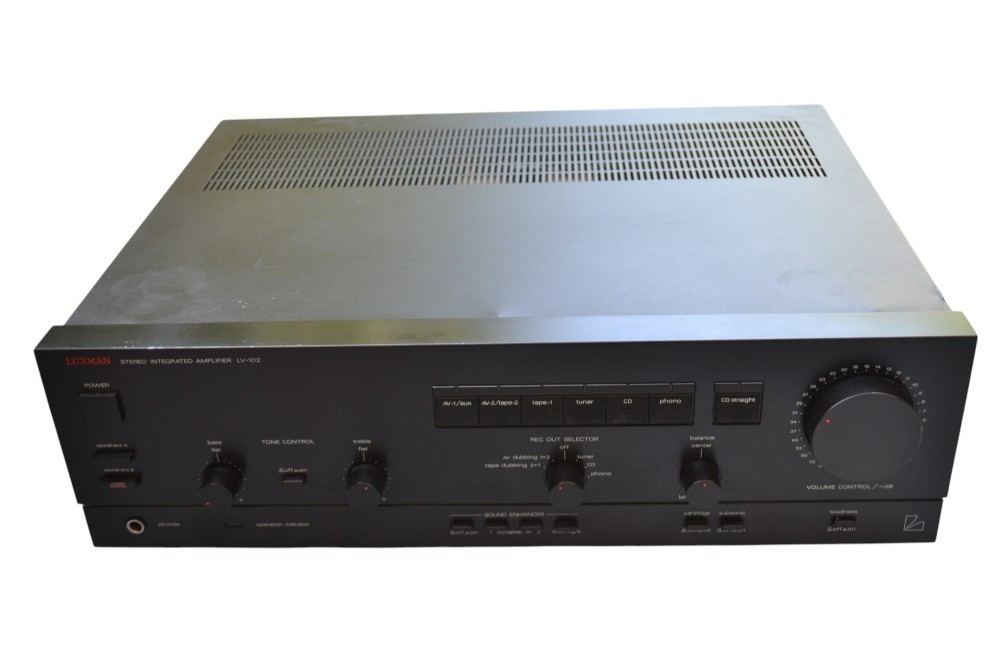

Amplificator Luxman LV 102

Amplificator Luxman LV 102: 6 intrari, 4 iesiri, 4-16 ohmi, negru, made in japan, regaje bass, inalte, balance, tone control, loudness, phono selector, subsonic, poze reale.

General

• Manufacturer: Luxman
• Model: LV-102
• Type: Integrated amplifier
• Years of manufacture: 1986 - 1987
• Made in: Japan
• Color: Black
• Power consumption: 150 W
• Dimensions: 438 x 138 x 352 mm (WxHxD)
• Weight: 11 kg
• Original price approx.: UVP 1'250 DM (1986)

Connections

• Number of inputs:
  • Phono MM: 2,5 mV, 47 kOhm
  • Phono MC: 0.22 mV, 100 Ohm

CD: 160 mV, 50 kOhm

• • Tuner: 160 mV, 50 kOhm
  • Tape Play 1, 2: 160 mV, 50 kOhm
  • AV Audio Play: 160 mV, 50 kOhm
  • AV Video Play:
• Number of Outputs:
  • Tape Rec 1, 2:
  • AV Audio Rec:
  • AV Video Rec:
  • Headphones:
  • 2 pairs of speakers

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 65 W (RMS, 20 Hz - 20 kHz)

6 Ohm: 2x 80 W

• Dynamic power
  • 8 Ohm: 2x 80 W
  • 4 Ohm: 2x 120 W
• Total harmonic distortion: 0.007 % (1 kHz)
• Attenuation factor:
• Frequency response:
  • Phono MM: 20 Hz - 20 kHz, ± 0.3 dB

CD, Tuner, Line, AV Audio: 1 Hz - 120 kHz, ± 3 dB

• • Video AV 1, 2: 10 Hz - 6 MHz

Signal-to-noise ratio:

• • Phono MC: 66 dB

Phono MM: 90 dB CD, Tuner, Line, AV-Audio: > 105 dB

• Tone control
  • Bass (100 Hz): ± 10 dB
  • Treble: (10 kHz): ± 10 dB
• Loudness: +6 dB/100 Hz; +5 dB/10 kHz
• High Filter: no
• Low Filter (Subsonic): yes
• CD-Straight: yes
