Amplificator Luxman R 351

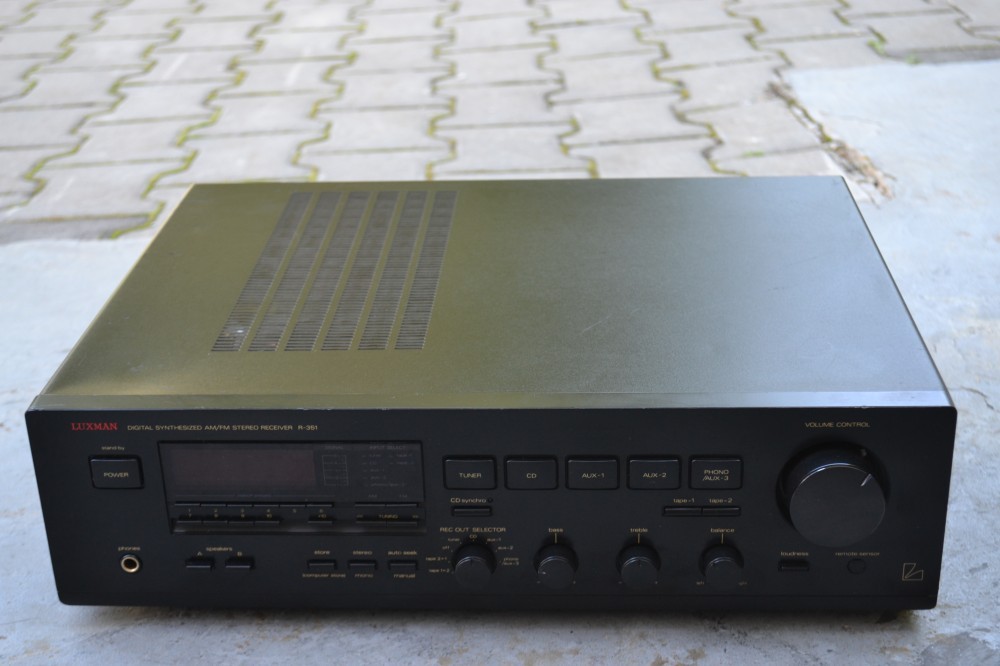

 Amplificator Luxman R 351 : 6 intrari, 4 iesiri, impedanta 8-16 ohmi, made in Korea, culoare neagra, reglaje bass, treble, balance, loudness, senzor de telecomanda, radio cu memorii, afisaj, mono/stereo, poze reale.

General

• Manufacturer: Luxman
• Model: R-351
• Year of manufacture: 1992 - 1993
• Made in: Korea
• Color: gold, black
• Remote control: RR-351
• Power consumption:
• Dimensions: 438 x 125 x 375 mm (WxHxD).
• Weight: 9 Kg
• Original price approx:
  • Luxman R-351 B: 1'190 DM

Luxman R-351 G: 1'250 DM

Connections

• Number of inputs:
  • Phono (MM): 2.5 mV/47 kOhm

CD: 150 mV/35 kOhm

• • Tape Play: 150 mV/35 kOhm

Aux 1: 150 mV/35 kOhm

• • Phono / Aux-2: switchable
  • Main in:
• Number of outputs:
  • Tape Rec:
  • Pre Out: 800 mV
  • Headphones:
  • 2 pairs of speakers
  • System Bus

Technical Data

Amplifier

• Continuous power (at distortion)
  • 8 Ohm: 2 * 65 W RMS (0,1%)

8 Ohm: 2 * 70 W DIN 4 Ohm: 2 * 90 W DIN

• Dynamic power
  • 8 Ohm: 2 * 85 W
  • 4 Ohm: 2 * 115 W
  • 2 Ohm: 2 * 140 W
• Total harmonic distortion: 0,009%
• Attenuation factor: 55 (8 Ohm)
• Frequency response:
  • Phono (RIAA): 20 Hz - 20 KHz

CD, Tape, Aux: 7 Hz - 100 KHz Signal-to-noise ratio:

• • Phono: 80 dB

CD, Tape, Aux: 95 dB

• Stereo channel separation:
• Tone control:
  • Bass: ± 10 dB

Treble: ± 10 dB

• Loudness: yes
• High Filter: no
• Low Filter (Subsonic): no
• Mute: via FB

Tuner

• Reception: FM, MW
• Frequencies:
  • FM: 87.5 - 108 MHz

MW: 535 - 1605 kHz

• All other specifications for VHF
• Frequency response:
• Input sensitivity: 10.8 dBf
• Distortion factor:
  • Mono: 0.2 %

Stereo: 0.2

• Signal-to-noise ratio:
  • Mono: 78 dB

Stereo: 72 dB

• Channel separation:
  • Mono: 65 dB
  • Stereo: 48 dB
• selectivity: 65 dB
• Co-wave selection: 1.5 dB
• Spurious wave selection:
• IF attenuation: 90 dB
• IF attenuation:
• AM suppression:
• Station memory: 20

Special Features

• Servo-driven volume control
• System bus
• Programmable sleep time
• CD synchronisation
