Amplificator Onkyo A 9355

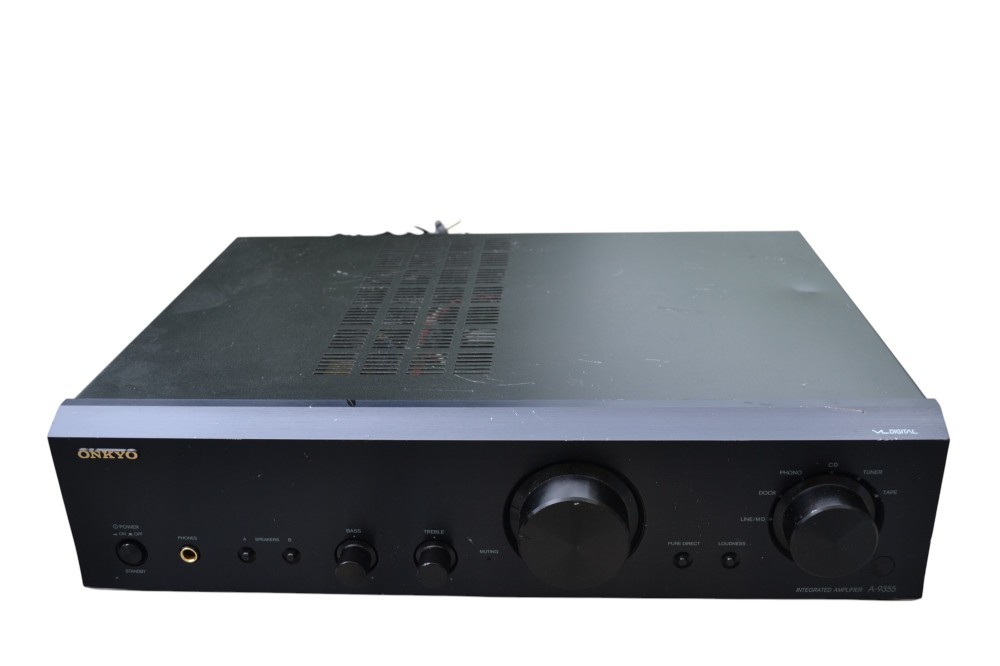

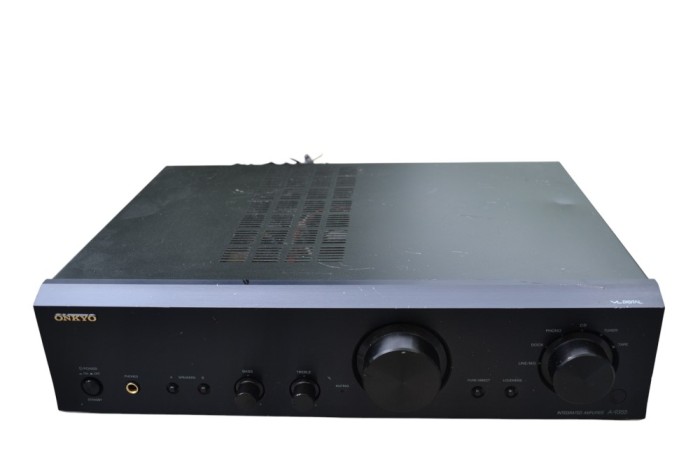

Amplificator Onkyo A 9355: 6 intrare, 4 iesiri, 4-16 ohmi, senzor telecomanda, made in Malaysia, reglaje bass, inalte, balance, pure direct, loudness, digital amplifier, mici zgarieturi, poze reale.

General

• Manufacturer: Onkyo
• Model: A-9355
• Years of manufacture: 2007 - 2009
• Manufactured in:
• Color: silver black
• Type: Stereo, Digital
• Remote control: yes (RC-627S)
• Power consumption: 46 W (operation), 0.2 W (standby)

Dimensions: 435 x 124 x 344 mm (WxHxD)

• Weight: 7,3 kg
• New price approx:

Connections

• Number of inputs:
  • Phono MM (RCA): 2.5 mV / 50 kOhm.

CD, Tuner, Tape In, Line In, Dock (Cinch): 200 mV / 50 kOhm

• • Remote
• Number of outputs:
  • Tape Out, Line Out (Cinch): 200 mV / 2.2 kOhm
  • Headphones (6,3mm jack)
  • Remote
  • 2 speaker pairs (4-16 Ohm)

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm:
  • 4 Ohm: 2x 70 W (IEC, 1 kHz)
  • 4 Ohm: 2x 85 W (JEITA, 1 kHz)
• Dynamic power
  • 8 Ohm: 38 W
  • 4 Ohm: 75 W
• Total harmonic distortion: 0.08% (1 kHz, 1 W)
• Attenuation factor: 60 (1 kHz, 8 Ohm)
• Frequency response: 10 - 60,000 Hz (+1/-3 dB)
• Signal-to-noise ratio: 100 dB (CD), 70 dB (phono)
• Stereo channel separation:
• Tone control:
  • Bass: yes, ±10 dB (100 Hz).

Treble: yes, ±10 dB (10 kHz)

• Loudness: yes, +8 dB (100 Hz)/+4 dB (10 kHz)
• High Filter: no
• Low Filter (Subsonic): no
• Mute: yes
• Direct/Line-Straight: yes

Special Features

• 2x AC Out
