Amplificator Philips 22 AH 799

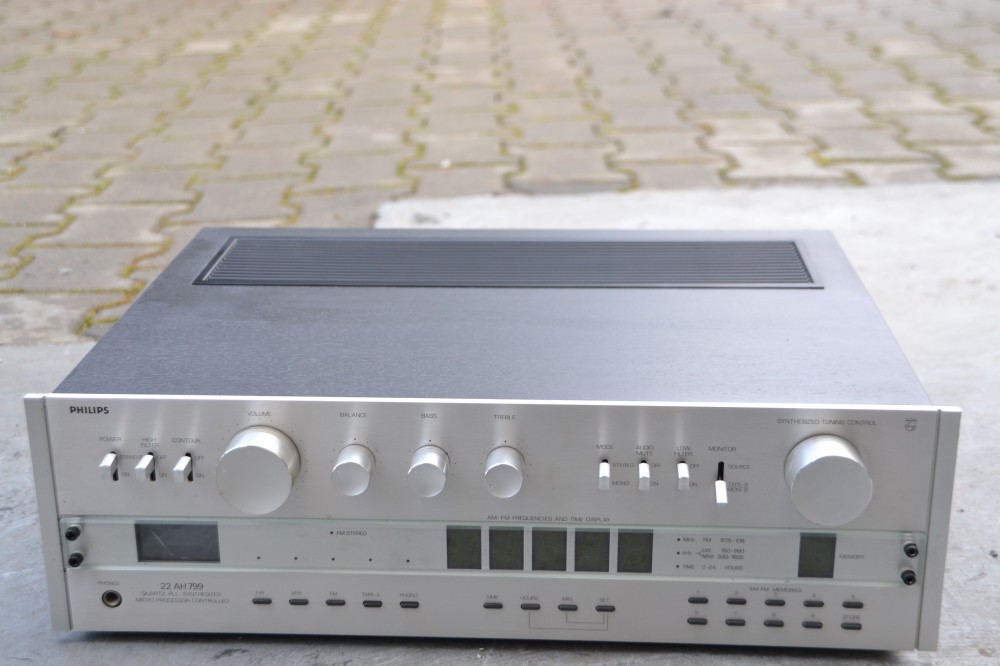

  Amplificator Philips 22 AH 799 :P 185 W consum din retea, 4 iesiri, 4 intrari, carcasa de lemn, fata din aluminiu, high filter, reglaje bass, treble, balance, afisaj, vumetre signal, radio incorporat, AM/FM cu memorii, low filter, muting, poze reale, made in Olanda.  NU FUNTIONEAZA RADIO.

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 96 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org
• Model: 22AH799 /00 /15 /25 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 150 x 335 mm / 19 x 5.9 x 13.2 inch

• Notes

• Digital PLL-Tuner.

  Power output: 2 x 48 W into 4 Ω (f = 1 kHz)
  Frequency response: 15 Hz ... 25 kHz (±1.5 dB)
  THD: 0.2% at 40 W

  Wavebands:
  FM = 87.5 - 108 MHz
  MW = 520 - 1605 kHz
  LW = 150 - 200 kHz

  Connectors for Motional Feedback Speakers.

  Some models come with wooden body, some are metal.
  Some versions have a print "AM-FM Synthesized Receiver" on the front, while the 1979 brochure's image shows "Quartz-PLL Synthesizer".

  Semiconductors only listed once per type.

• Mentioned in
• -- Original prospect or advert (Discoteca HiFi, n. 208-209, Agosto-Settembre 1980 (I))

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original prospect or advert (Philips High Fidelity Electronics, 1979/1980 (D))

• Author
• Model page created by Hugo Litman. See "Data change" for further contributors.
