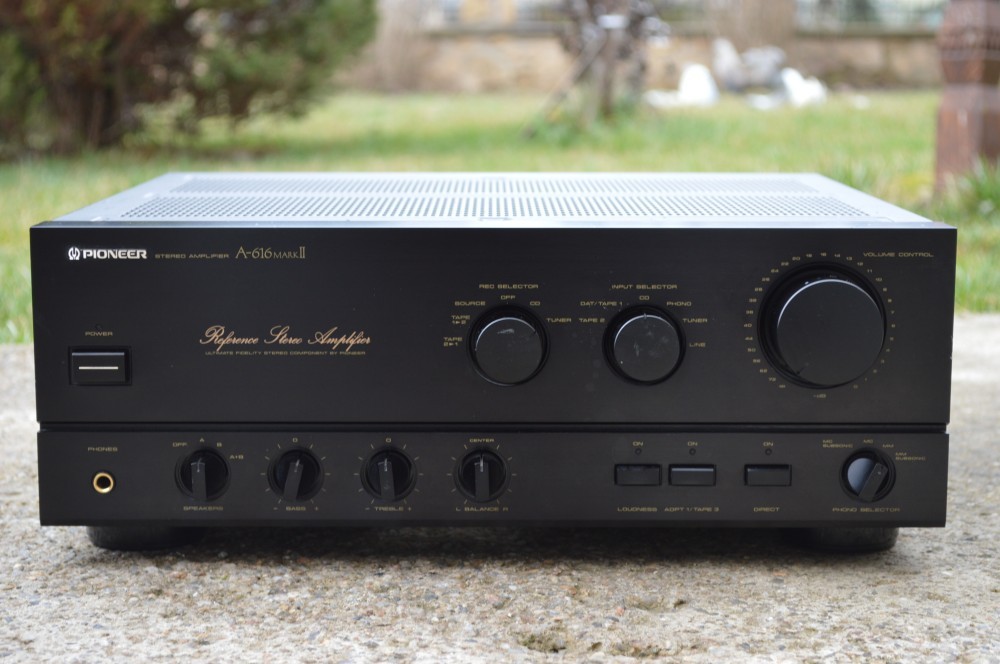

Amplificator Pioneer A 616 Mark II

Amplificator Pioneer A 616 Mark II: 7 intrari, 4 iesiri, 650 W consum din retea, impedanta 4-16 ohmi, reglaje bass, treble, balance, loudness, source direct, phono selector, arata foarte bine, suna foarte bine, culoare neagra, Made in JAPAN.

Rating of a mode
Form Stereo Integrated Amplifier
Output power
(Both channel drive, 20Hz - 20kHz) 120W+120W (4 ohm, 0.008%)
100W+100W (6 ohm, 0.005%)
90W+90W (8 ohm, 0.005%)
Input sensitivity/impedance Phono man month: 2.5mV / 50kohm
Phono MC: 0.2mV/100 ohms
compact disk, Tuner, Line, Tape:150mV /, 50kohm
Maximum permissible input (1kHz, 0.008%) Phono MM:200mV
Phono MC:19mV
Frequency characteristic Phono man month: 20Hz-20kHz±0.2dB
Phono MC: 20Hz-20kHz±0.3dB
compact disk, Tuner, Line, and Tape:1Hz-150kHz+0 -3 dB
S/N ratio (IHF, A network)
Short circuit Phono man month: 89dB (2.5mV o'clock)
Phono MC: 71dB (0.25mV o'clock)
compact disk, Tuner, Line, DAT/Tape1, 2:108dB
Supply voltage AC100V, 50Hz/60Hz
AC outlet Power-switch interlock: Two lines (150W)
Power-switch un-interlocking.: One line (100W)
Power consumption (Electrical Appliance and Material Control Law) 220W
Dimensions Width 420x height 162x depth of 435mm
Weight 14.4kg
