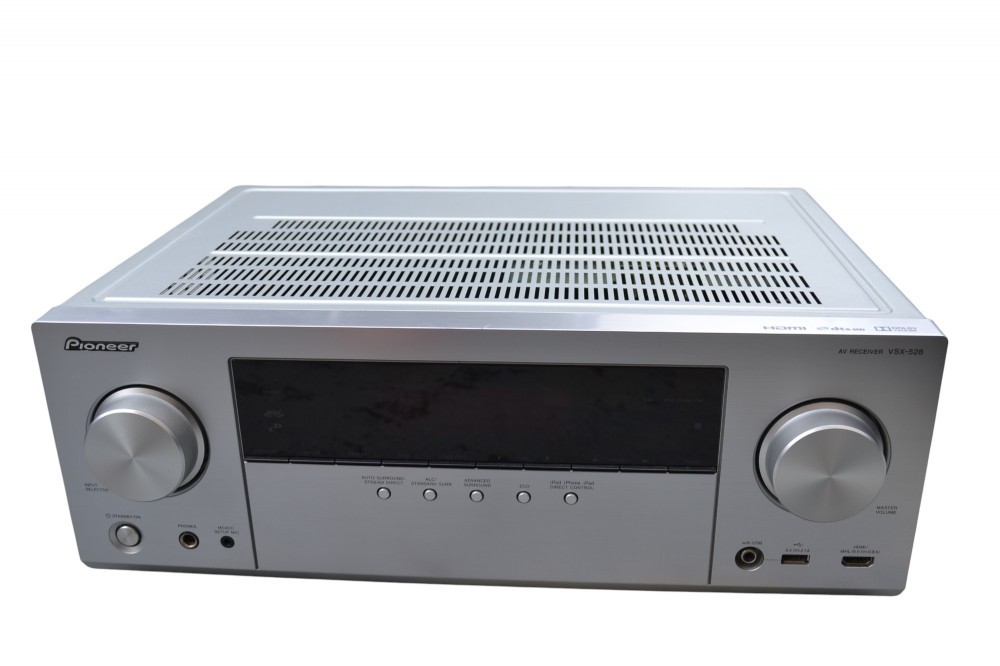

Amplificator Pioneer VSX 528 cu HDMI Network

  Amplificator Pioneer VSX 528 cu HDMI Net : 3 intrari, 5 iesiri, impedanta 6-16 ohmi, 450 W consum din retea, opticaxial, 5 X HDMI in, DTS HD, Dolby True HD, poze reale.

Output Power per Channel130W
Impedance at Output Level6
Number of Channels5
Input Connections5 x HDMI
1 x MHL HDMI (Front)
3 x Composite
1 x Digital Coaxial (Assignable)
1 x Digital Optical (Assignable)
1 x USB 2.0 host (iPod/iPhone/iPad Digital Audio, USB drive)
1 x Ethernet
1 x Bluetooth adapter port forAS-BT200
Output Connections1 x HDMI
1 x Composite
1x preout Subwoofer
5x speaker out
1 x Phones out
File PlaybackVia LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless
192 kHz/24-Bit Audio playback: WAV, FLAC, AIFF
MHL Terminal for Android Smartphones
HD Audio FormaftsDolby TrueHD, DTS-HD Master Audio
Audio Return Channel
Stand-by Pass Through
4K Pass Through
Control with HDMI (+)
On-Screen Display (GUI)via HDMI only in English, French, Italian, German, Spanish, Dutch and Russian
Firmware updates (via USB)
Internet Radio
vTuner
DLNA Certified (+)(v1.5)
Windows 7 Certified
Windows 8 Certified
Remote ControlGlow-key, preset remote control
Eco Mode

Bluetooth Adapter Port (+)
Composite Input/Output2/1
Digital Optical Input/Output1/- (assignable)
Digital Coaxial Input/Output1/- (assignable)
Ethernet (+)1
HDMI Input/Output6/1
Headphone
Large speaker terminals
Pre-amp Output
USB Host (Front) (+)

Control App
Air Jam

Works with iPod
Works with iPhone
Works with iPad
AirPlay
iPhone Control Button (+)
Compatible GenerationsPad 4G(*)/3G
iPad2, iPad
iPad mini(*)
iPhone 5(*), iPhone 4S
iPhone 4, iPhone 3GS
iPhone 3G, iPhone
iPod touch 5G(*)/4G/3G/2G/1G
iPod nano 7G(*)/6G(*)/5G/4G/3G

(*) : Audio only
Supported FunctionsAudio & video playback
On-screen album art
Charging

Dolby Digital (+)
Dolby Digital Plus (+)
Dolby Pro Logic II (+)
Dolby True HD (+)
DTS (+)
DTS Neo: 6 (+)
DTS 96/24 (+)
DTS-Express (+)
DTS-HD High Resolution Audio (+)
DTS-HD Master Audio (+)
Surround Modes (+)11 + 1 for Phones

AM/FM Tuner with RDS
Tuner Pre-set Stations30
Auto Level Control (+) (2 channel)
Auto Surround
DSD-to-PCM Convertor (2 channel)
Dynamic Range Control
Headphone Surround
Front Stage Surround Advance (+)
Loudness (+)
Midnight Listening Mode (+)
Phase Control (+)
MCACC (+)
Sound Delay (LipSync) (+)
Advanced Sound Retriever (+)(2 channel)
Sound Retriever AIR (+)
Stream Direct (+)
Symmetric EQ (+)

Deep Colour (+)
3D Ready
x. v. Colour (+)

Power output per channel130W
Condition1 kHz, 1 % THD, 6
Rated Power Output130W per channel
Power Requirements220–230 V AC / 50/60 Hz
Power Consumption (in use / standby)450 W / 0,1 W
Auto Power Down

Digital Signal ProcessorTexas Instruments Aureus TM TMS320DA788
D/A Converter192 kHz / 24-bit
A/D Converter96 kHz / 24-bit
Dimensions (W x H x D)435 x 168 x 331.5 mm
Weight8.5 kg
