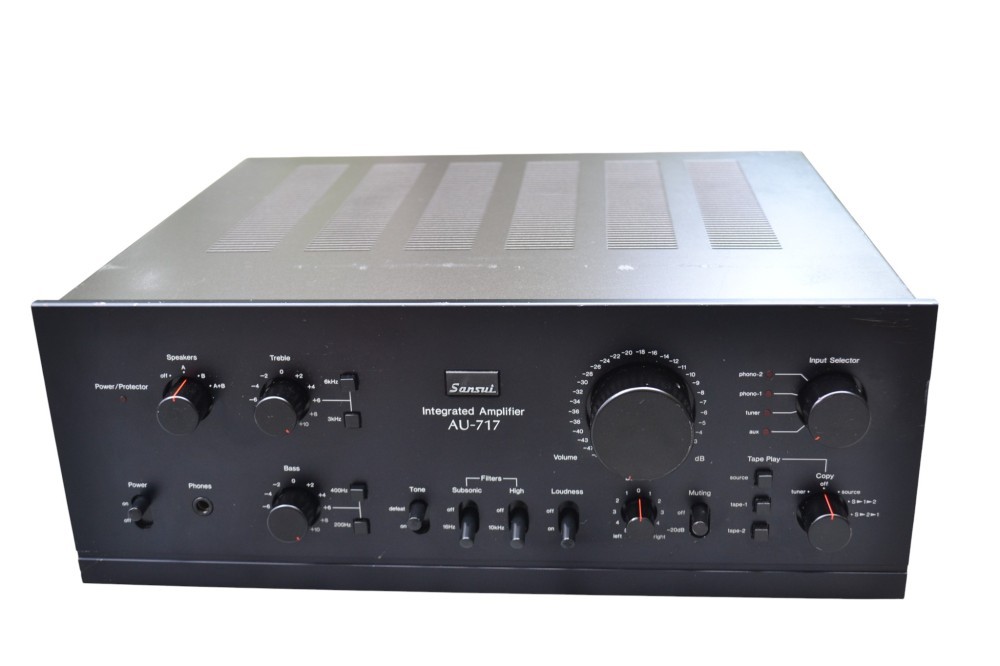

Amplificator Sansui AU 717

Amplificator Sansui AU 717: made in japan, 7 intrari, 4 iesiri, 4-16 ohmi, 2 trafuri, 4 cndensatri filtraj, 2 radiatoare, 425W consum, negru, reglaje bass, inalte, balance, reglaj bass/inalte pe frecventa, muting, loudness, subsonic, high filter, poze reale.

General

• Manufacturer: Sansui
• Model: AU-717
• Years of manufacture: 1977 - 1979
• Type: Integrated amplifier
• Made in: Japan
• Color: Black
• Remote control: no
• Power consumption: maximum 735 W
• Dimensions: 482 x 168 x 389 mm (WxHxD)
• Weight: 17.8 kg
• Original price approx.: 1'400 DM

Connections

• Inputs
  • Phono 1, Phono 2, AUX/CD, Tuner, Tape 1, Tape 2, Power amplifier
• Outputs
  • Tape 1, Tape 2, Preamplifier
• Loudspeaker / Headphone
  • Headphone output on the front
  • 2 pairs of speakers connectable

Technical Data

• Output power
  • 8 Ohm: 2x 85 W

4 Ohm: 2x 125 W

• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Frequency range: DC - 200 kHz
• Channel separation
  • Phono 1 + 2: >60 dB
  • AUX, Tuner, Tape: >65 dB
• Noise voltage distance
  • Phono 1 + 2: 80 dB
  • AUX, Tuner, Tape: 100 dB
• Attenuation factor: 60
• Distortion factor: < 0,025%
• Input sensitivity
  • Phono 1 + 2: 2,5mV, 47kOhm
  • AUX, Tuner, Tape: 150 mV, 47 kOhm
• Sound Controls
  • Bass: ± 10 dB (50Hz)
  • Treble: ± 10 dB (15kHz)
  • Subsoinc Filter: -3dB (16Hz) (6dB/octave).
  • Loudness:
    • +9 dB (50Hz)
    • +7 dB (10kHz)
