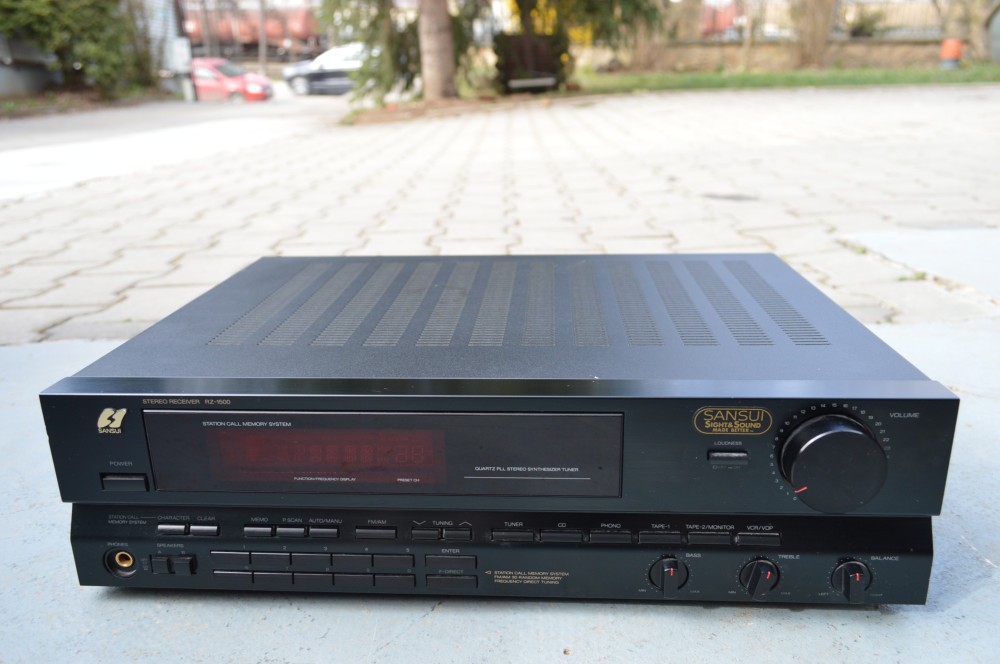

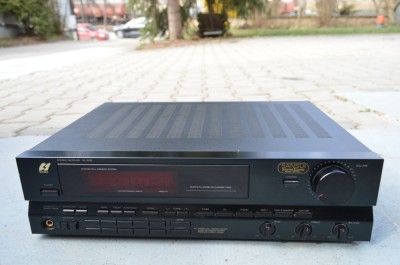

Amplificator Sansui RZ 1500

  Amplificator Sansui RZ 1500: 5 intrari, 4 iesiri, impedanta 4-16 ohmi, 280 W consum din retea, reglaje bass, treble, balance, loudness, radio cu afisaj, 30 de memorii, Quartz Lock, PLC, culoare neagra.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 64 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver RZ-1500 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 125 x 335 mm / 16.9 x 4.9 x 13.2 inch

• Notes

• Specifications

  Audio Section
  Power Output :
  Minimum RMS both channels driven from 40-20,000 Hz with no more than 0.09% THD
      32 watts per channel into 8 ohms
  DIN
      38 watts per channel into 8 ohms
  Load Impedance 4 - 16 ohms
  Input Sensitivity and Impedance (1 kHz)
      Phono 2.5mV/47KOhms,
      CD    200mV/47KOhms,
      Tape  150mV/47KOhms.
  Frequency Response at 1 watt
      10-70,000 Hz +1 dB, -3 dB

  FM Section
      Tuning Range 88 - 108 MHz

  AM Section
      530 - 1600 kHz

  Ausgangsleistung 2 x 32W an 8 Ohm;
  Ausgangsimpedanz von 4 bis 16 Ohm;
  Eingänge: Phono 2,5mV an 47KOhm, CD 200mV an 47KOhm, Tape 150mV an 47KOhm.
  Frequenzbereiche: FM 88 bis 108 MHz, AM 530 bis 1600 KHz.



• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Mentioned in
• - - Manufacturers Literature (Sansui Service Manual for the RZ-1500 Computerized Stereo Receiver)

• Author
• Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
