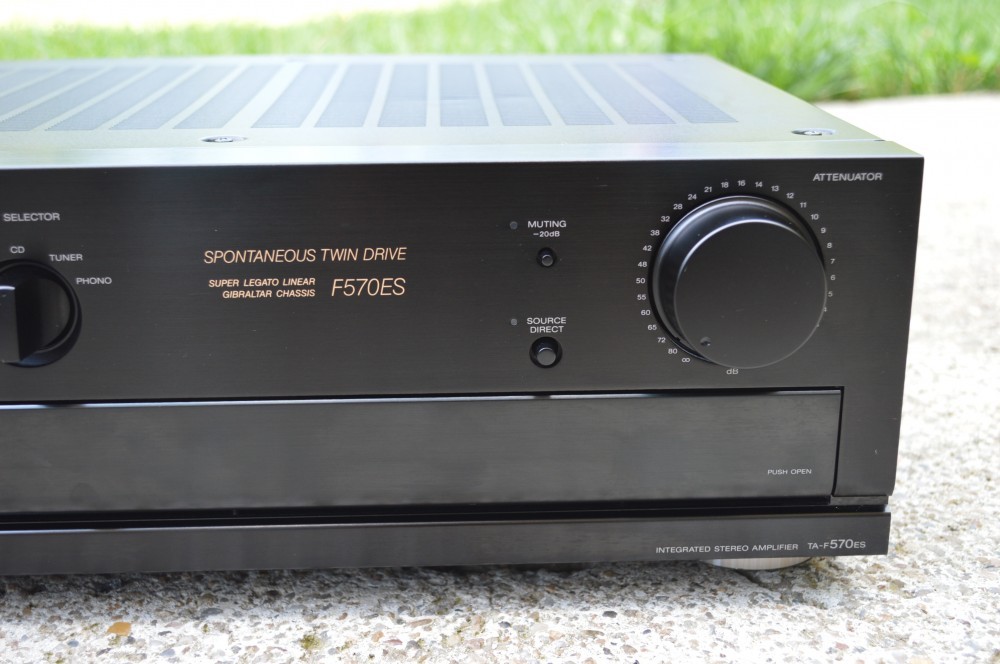

Amplificator Sony TA-F 570 ES

Amplificator Sony TA-F 570 ES: 8 intrari, 4 iesiri, mufe aurite, impedanta 4-16 ohmi, arata foarte bine, suna foarte bine, 4 condensatori filtraj, transformator toroidal, radiator mare, direct link system, reglaje bass, treble, balance, subsonic, phono selector, muting, Spontaneous Twin Drive, suna foarte bine, made in Japan.

General
Manufacturer: Sony
Model: TA-F570ES
Made in Japan
Color: Black
Type: Analog
Remote Control: No
Power consumption: 260W
Dimensions: 430 x 150 x 375 mm
Weight: 12 kg
Technical Specifications
Continuous electrical power (at THD)
8 Ohm: 2 x 90 W at 0.004%
Phono input (switchable MM or MC).
Gold-plated RCA inputs and outputs
Headphone jack (stereo 3.5 mm) Gold Plated
REC Out selector.
Housing is silky-matt black and solid metal.
Damping factor: 100
Frequency response: 10Hz - 100kHz
EQ: Yes, switchable
Bass: at 100Hz + -7dB
Heights at 10kHz + 6db
Loudness: no
High filter: no
Mute: Yes, -20db
Direct / Line Straight: yes
Connections
8 inputs: tuner, CD, Direct In, Tape 1,2,3, Adaptor, Aux (150mV, 20 Ohm) 1x Phono MM / MC (2.5mV, 50Kohm / 0,17mV, 100Ohm)
4 outputs: Tape 1,2,3 Adaptor (150mV, 1 kOhm)
Additional ports can be switched separately for Direct-IN adapter IN / OUT for equalizer or similar.
Special Features
Robust chassis, so-called Gibraltar structure reduces the possible vibration distortion.
Oversized, gekaspelter toroidal transformer always keeps ready sufficient performance for even the most dynamic peaks.
Preamplifier: Low noise NFB equalizer amplifier with high gain.
Endverstärkerteil: pure complementary push-pull stage.
Tone control section with only passive components to avoid bias.
Power amplifier Super Legato Linear system ensures high output power.
At the same time, A & B boxes range 8 - 16 Ohm, otherwise 4 - 16 ohms
Direct input for accurate representation of the signal source
