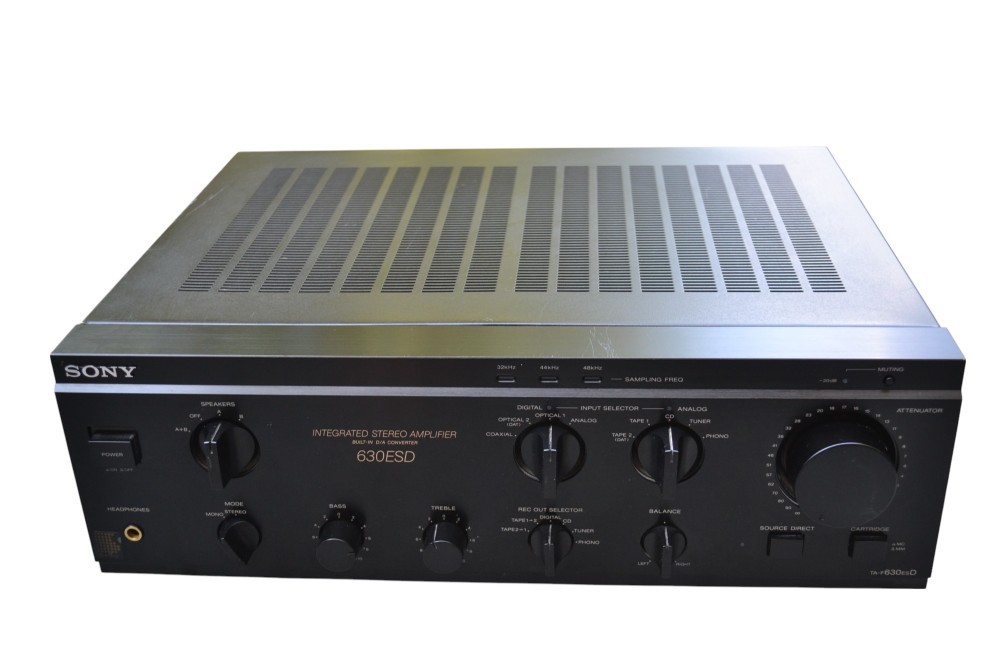

Amplificator Sony TA F 630 ESD

Amplificator Sony TA-F 630 ESD: 5 intrari, 4 iesiri, impedanta 4-16 ohmi, optical+coaxial input, culoare neagra, reglaje bass, treble, balance, Source Direct, Phono selector, muting,  4 condensatori filtraj, poze reale, made in Japan.

Source Direct function

Rec Out Selector
Tape monitor function
Adapter IN / OUT for the equalization of the equalizer
STD power supply (separate power supplies for Class-A driver stages and Class-B power amplifiers)
Super Legato Linear Technology
MC / MM circuit
Stereo / mono switch
G chassis
D / A converter (1-bit PDM, 256x oversampling)
2 optical digital inputs
1 coaxial digital input
1 optical digital output
Inputs: Phono MM, Phono MC, Tuner, CD, Direct, Tape (1/2/3), Adapter (EQ)
Outputs: Rec-Out (1/2/3), adapter-out, headphones, loudspeaker pairs A / B
Sine power: 2 x 160 W
Distortion Factor: 0.003%
Frequency response: 2-200000 Hz, +/- 3 dB
Signal-to-noise ratio: 105 dB
Speaker Impedance: 4 - 16 Ohm
Dimensions W x H x D: 430 x 150 x 390 mm
Weight: 13.7 kg
