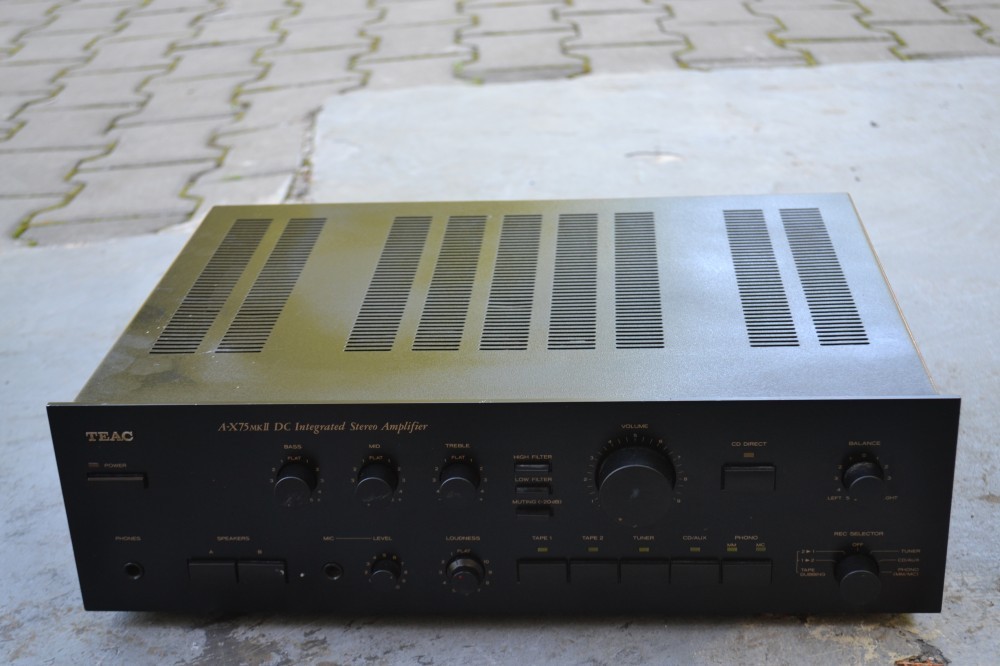

Amplificator Teac A X 75 Mk II

Amplificator Teac A-X 75 Mk II: 5 intrari, 4 iesiri, impedanta 8-16 ohmi, 320W consum din retea, phono selector, reglaje bass, medii, inalte, high/low filter, muting, cd direct, iesire de microfon cu volum separat, loudness variabil, negru, poze reale.

    Year: 1987 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (380 W max.)
from Radiomuseum.org Model: DC Integrated Stereo Amplifier A-X75 - TEAC; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 120 x 295 mm / 17.1 x 4.7 x 11.6 inch
Notes
DC-Vollverstärker A-X75.
Eingänge: 2x Tape, Tuner, CD/Aux, Phono MM/MC, Mic
Vor- und Endstufe auftrennbar.
Ausgänge: 2 Lautsprecherpaare.

Spannungsversorgung:
110; 220 V AC, 50/60 Hz, 320 W (allg. Exportmodell)
120 V AC, 60 Hz, 290 W (USA / Kanada)
220 V AC, 50 Hz, 320 W (Europa)
240 V AC, 50 Hz, 320 W (GB / Australien)

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 649.00 DM
