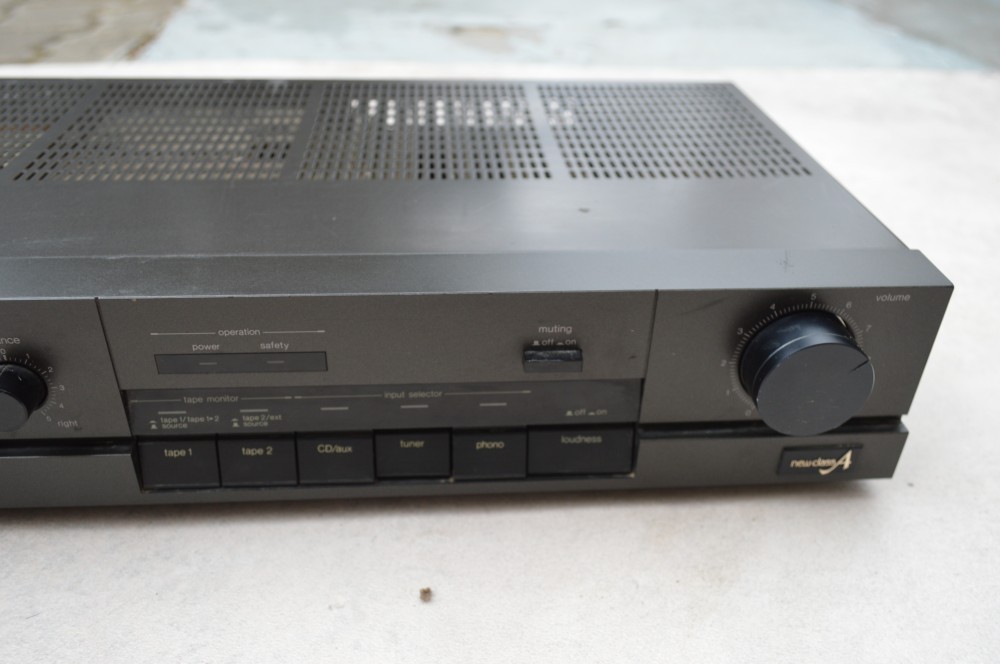

Amplificator Technics SU 700

Amplificator Technics SU 700; 5 intrari, 4 iesiri, 4-16 ohmi, maade in japan, 360W consum racire freon, reglaje bass, inalte, balance, loudness, muting, new class A,   poze reale.

General

• Manufacturer: Technics
• Model: SU-700
• Type: Integrated amplifier
• Years of manufacture: 1986 - 1991
• Made in: Japan
• Colors: Silver, Black
• Remote control: no
• Power consumption: 360 W
• Dimensions: 430 x 86 x 240 mm (WxHxD)
• Weight: 5.3 kg
• Original price approx.: 598 DM

Connections

• Number of inputs:
  • Phono (MM): 2.5 mV / 47 kOhm.

Tuner, CD, Aux, Tape 1/DA Tape, Tape 2/EXT: 150 mV / 22 kOhm

• Number of outputs:
  • 2x Tape
  • 2 pairs of speakers
  • Headphones (6,5mm jack)

Specifications

• continuous sound output power 20 Hz - 20 kHz
  • 8 Ohm:
  • 4 Ohm:
• Continuous sound output power 1 kHz

8 Ohm: 2 x 60 W

• • 4 Ohm: 2 x 70 W
• Total harmonic distortion: 0.04 % (8 Ohm)
• Attenuation factor: 50 (8 Ohm)
• Frequency response:
  • Phono: RIAA ±0.8 dB: 30 - 15'000 Hz
  • High level: 5 - 90'000 Hz (+0/-0,2 dB)
• External voltage spacing:
  • Phono MM: 79 dB
  • High level: 98 dB
• Tone control:
  • Bass: ± 10 dB at 50 Hz

treble: ± 10 dB at 20 kHz

• Loudness: yes, 50Hz + 9dB
• Low Filter (Subsonic):
