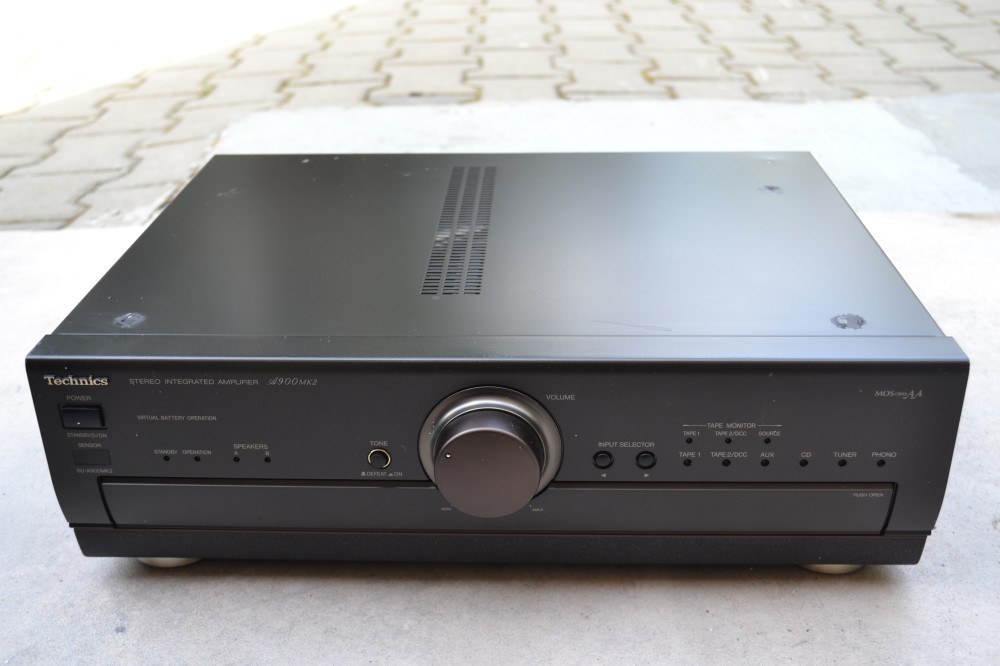

Amplificator Technics SU A 900 MK 2

Amplificator Technics SU A 900 Mk II : 6 intrari, 4 iesiri, impedanta 4-16 ohmi, ventilator incoporat, 315 W consum din retea, senzor pentru telecomanda, mos Class AA, reglaje bass, treble, balance, phono selector, poze reale.

General

• Manufacturer: Technics
• Model: SU-A900 MK 2
• Years of manufacture: 1995-1997
• Made in: Japan
• Color: Anthracite
• Type: Analog
• Remote control: yes
• Power consumption: 315 W
• Dimensions: 430 x 136 x 365mm
• Weight: 9.4 kg
• Original price approx.: 999,- DM (UVP)

Connections

• Number of inputs:
  • Phono MM/MC (2.5mV, 47 kOhm / 170μV, 220 Ohm).
  • AUX (150mV, 22 kOhm)

Tuner (150mV, 22 kOhm) CD (150mV, 22 kOhm)

• • Tape1/Tape2 (150mV, 22 kOhm).
• Number of outputs:
  • Tape1
  • Tape2

Technical Data

• Continuous power at distortion factor 0.7%

8 Ohm: 2 x 90 W 4 Ohm: 2 x 140 W (DIN) Total harmonic distortion: 0,01% Intermodulation disortion: 0,007%

• Attenuation factor: 60 (8Ohm)
• Frequency response: 3 Hz to 80000Hz (+0, -3dB)
• Signal-to-noise ratio: 91 dB (100dB, IHF `66)
• Stereo channel separation (AUX 1 khz): 50dB
• Tone control:
  • Bass: 50Hz, +/- 10 dB
  • Treble: 20 kHz, +/- 20 dB
