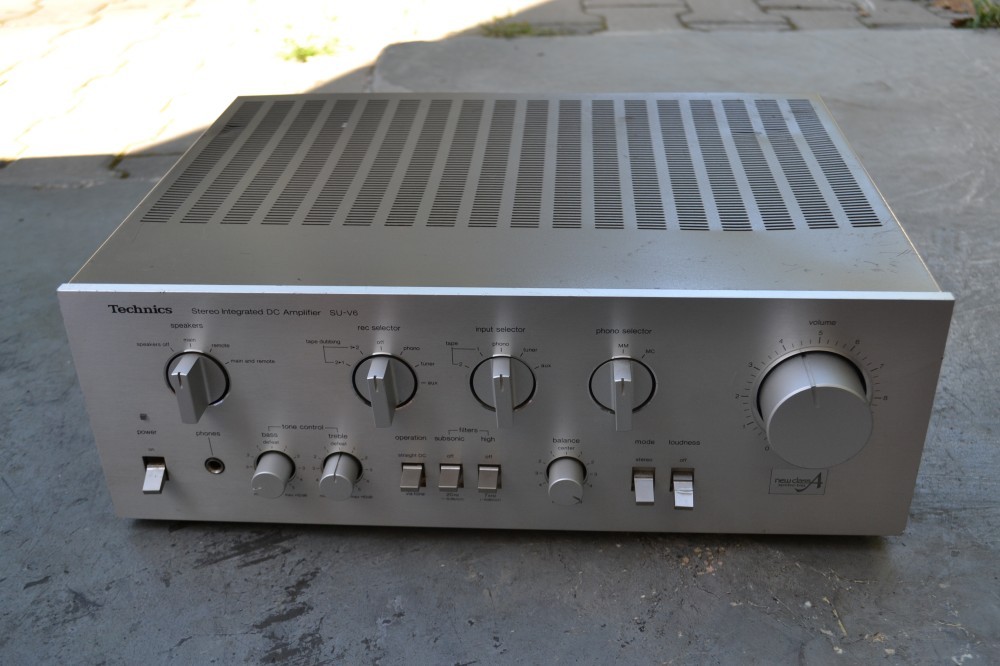

Amplificator Technics SU V 6

Amplificator Technics SU V 6 : 8 finali, 4 condensatori filtraj, 6 intrari, 4 iesiri, impedanta 4-16 ohmi, 760 W consum din retea, inalte, balance, reglaje pe frecvente, muting, filter, Loudness, new class A, poze reale, made in Japan.

General

• Manufacturer: Technics
• Model: SU-V6
• Type: Integrated amplifier
• Years of manufacture: 1980 - 1982
• Made in: Japan
• Color: black, silver
• Type: Analog, New Class A
• Remote control: no
• Power consumption: 760 W
• Dimensions: 430 x 153 x 351 mm (WxHxD)
• Weight: 12,5 kg
• Original price approx.: 998 DM

Connections

• Number of inputs:
  • Phono (MM): 2.5 mV / 47 kOhm.
  • Phono (MC): 170 µV / 47 Ohm
  • Tuner/Aux: 150 mV / 36 kOhm
  • Tape 1: 170 mV / 39 kOhm
  • Tape 2: 150 mV / 36 kOhm
• Number of outputs:
  • 2x Tape
  • 2 pairs of speakers
  • headphones

Technical Data

• Continuous power (20-20,000 Hz)
  • 8 Ohm: 2x 70 W

4 Ohm: 2x 80 W

• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.007%
• Attenuation Factor:
• Frequency Response:
  • Phono: RIAA ±0.5 dB
  • Tuner/Aux/Tape: 20 - 20,000 Hz (+0/-0.3 dB)
• Signal-to-noise ratio:
• Spurious Voltage Ratio:
  • Phono MM: 78 dB

Phono MC: 68 dB

• • Tuner/Aux: 92 dB
• Stereo Channel Separation:
• Tone control:
  • Bass: 50 Hz, ±10 dB

Treble: 20 kHz, ±10 dB

• Loudness: yes
• High Filter: 7 kHz, -6 dB/oct.
• Low Filter (Subsonic): 20 Hz, -12 dB/oct.
• Mute: no
• Direct/Line-Straight:

Special Features

• Separate selector switches for recording (REC) and playback (PLAY), allowing true rear-band control.
• Input selection via rotary switch, no power meter
