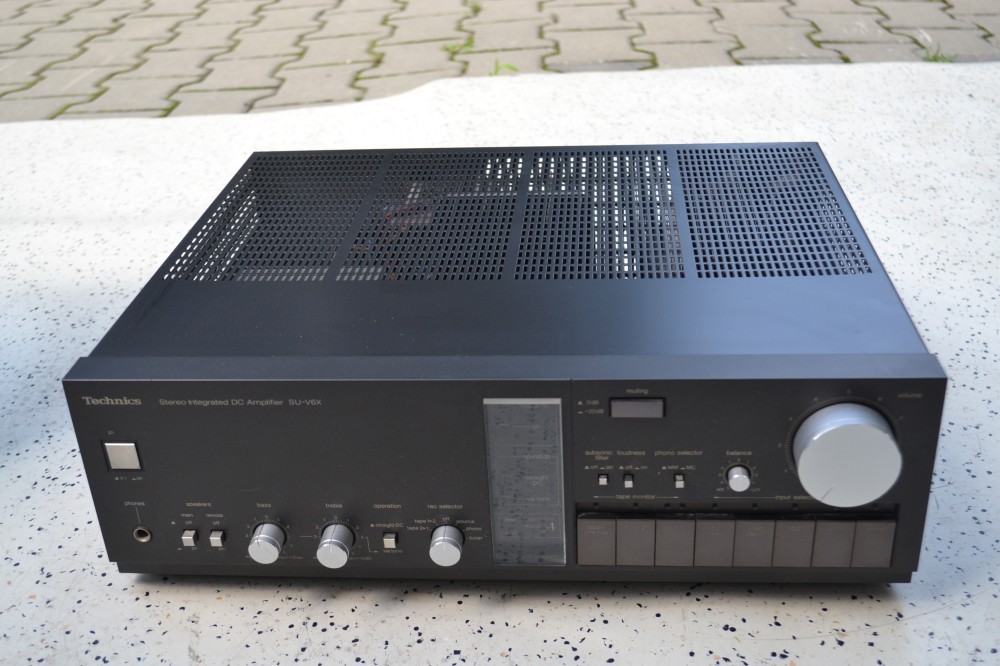

Amplificator Technics SU V 6 X

Amplificator Technics SU V 6 X : 6 intrari, 4 iesiri, 580W consum, 4-16 ohmi, made in Japan, racire freon, reglaje bass, inalte, balance, muting, subsonic, loudness, phono selector, computer drive, new class A, poze reale.

General

• Manufacturer: Technics
• Model: SU-V6X
• Type: Integrated amplifier
• Years of manufacture: 1983 - 1986
• Made in: Japan
• Color: Brown, Silver
• Remote control: no
• Power consumption: 580 W
• Dimensions: 430 x 142 x 380 mm (WxHxD)
• Weight: 11 kg
• Original price approx.: 1'100 DM

Connections

• Number of inputs:
  • Phono (MM): 2.5 mV / 47 kOhm
  • Phono (MC): 170 µV / 220 Ohm
  • Tuner, CD, TV/AUX 1, Video/AUX 2: 150 mV / 18 kOhm
  • 2x Tape: 150 mV / 18 kOhm
• Number of outputs:
  • 2x Tape
  • Headphones (6.3 mm jack, front)
  • 2 pairs of loudspeakers

Technical Data

• Continuous power (20-20,000 Hz)
  • 8 Ohm: 2x 100 W RMS

4 Ohm: 2x 100 W RMS

• Dynamic power
  • 16 Ohm:
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.001%
• Attenuation Factor:
• Frequency Response:
  • Phono: RIAA ±0.5 dB
  • High level: 0.7 - 140,000 Hz (-3 dB)
• Signal-to-noise ratio: (extraneous voltage at rated power)
  • Phono MM: 78 dB

Phono MC: 68 dB High level: 93 dB

• Stereo Channel Separation:
• Tone control:
  • Bass: ±10 dB
  • Treble: ±10 dB
• Loudness: yes
• High Filter: no
• Low Filter (Subsonic): 30 Hz (-6 dB/oct)
• Mute: -20 dB
• Direct/Line-Straight: yes
