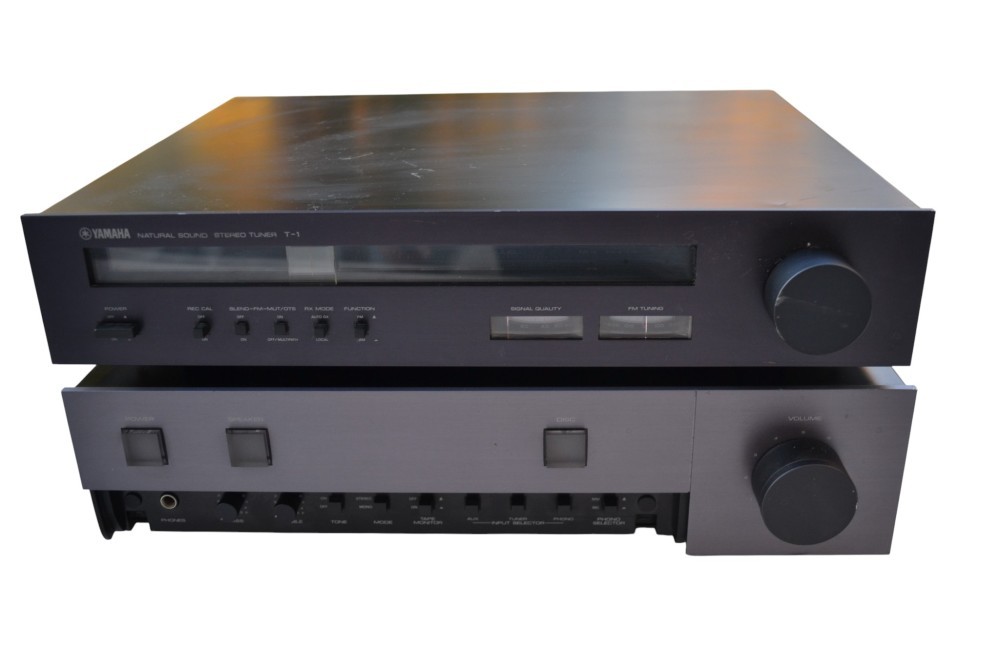

Amplificator Yamaha A 1 si Tuner Yamaha T 1 NS Series

    Amplificator Yamaha A 1 si Tuner Yamaha T 1 NS Series : 2 transformatoare, 2 radiatoare, 6 intrari, 2 iesiri, impedanta 8-16 ohmi, 400 W consum din retea, phono selector, culoare neagra, lipsa usita, tone control si tuner |Yamaha T 1, radio cu scala iluminata, Ns Series, made in Japan, poze reale.

Specifications

Power output: 80 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.01%

Damping factor: 100

Input sensitivity: 0.6mV (MC), 2.5mV (MM), 200mV (line)

Signal to noise ratio: 70dB (MC), 85dB (MM), 112dB (line)

Channel separation: 75dB (MM), 75dB (MC), 70dB (line)

Output: 200mV (line), 2V (Pre out)

Dimensions: 435 x 117 x 381mm

Weight: 15.8kg

Year: 1978

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 525 to 1605 kHz

Sensitivity: 1.7uV (FM), 15uV (MW)

Signal to Noise Ratio: 78dB (FM), 50dB (MW)

Distortion: 0.13% (FM), 0.4% (MW)

Selectivity: 92dB (FM), 30dB (MW)

Frequency response: 30Hz to 15kHz (FM)

Output: 500mV (FM), 125mV (MW)

Dimensions: 435 x 97 x 376mm

Weight: 5.7kg
